Dell Precision T3400 Video Card Replacement

Geschrieben von: Josette Cormier
  • Kommentare: 1
Dell Precision T3400 Video Card Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

20 Sekunden - 5 Minuten

Einleitung

This guide provides the necessary steps to successfully replace the video card in the Dell Precision T3400 desktop computer.

  1. sg3JuKxymcoq6pSI
    sg3JuKxymcoq6pSI
    3RYdClslUyFtO1hD

    • Lay the computer on its side so the panel faces up.

    • Push the cover release latch at the back of the computer's case. The cover should pop off and away from the computer.

    • Make sure the computer is on its side before you begin replacing any parts.

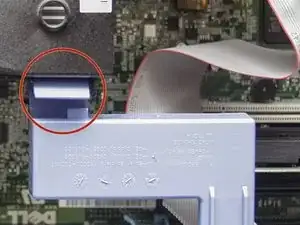

  2. yGJXUQ2Cj6OXfFZU

    • Push the tab on the blue plastic secure lever and pivot the lever down and away from the assembly

    • Make sure you ground yourself to prevent static discharge

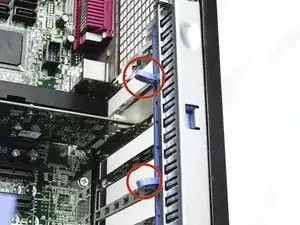

  3. FdjT14P2jOHhfagg
    FdjT14P2jOHhfagg

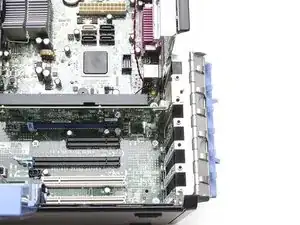

    YA4uMNDAunW6Zmbi

    • Squeeze the two release tabs together and pivot the secure hatch to the right to open.

  4. 42TYZxoRHjD3mLFB

    • Hold the card by its top corner and metal bracket and pull it out of its slot.

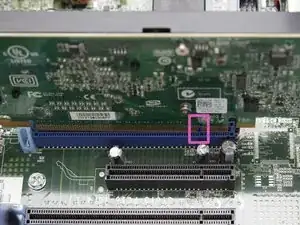

  5. DXWaASUsLKf5UyH2
    DXWaASUsLKf5UyH2

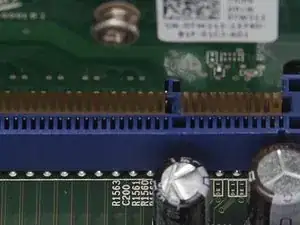

    djqQOWMbebsDKcdi

    • Match the new card’s connectors with the notches in the slot and gently push it into place. The card should click into position when inserted correctly.

    • Close the card door and move the blue plastic secure lever back into place.\

    • Ensure that the card you are replacing the existing card with meets wattage and connectivity requirements. Do not force a card into the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order. Step 1: Install new card and latch it in place. Step 2: Reinstall the side panel. Step 3: Plug everything back in
