Einleitung

If your speakers seem to be not in the best condition or broken entirely, use this guide to help change out your speakers. You will need a Phillips #0 screwdriver, a plastic opening tool, and tweezers.

  1. 1XQTweLLUiNXURGg
    1XQTweLLUiNXURGg
    acUeSE1Ar1i5SAdg
    HWEbZ6FDuYaAxHc6
    • Place the device flat on its screen.

    • Using the plastic opening tools, pry open the top segment of the tablet where the camera is located.

    • Take the segment off and place it to the side.

  2. krYEedUi4Q2Hj66f
    krYEedUi4Q2Hj66f
    6sEirHEw21YSGs2P
    • Remove four 4mm Phillips #0 screws.

  3. afZQQrYQTSBMerBk
    afZQQrYQTSBMerBk
    J14JWI1pZVFyQYA1
    • Using the plastic opening tool, lift off the entire back screen of the tablet.

  4. PgQQmbbPBpWFD2mo
    PgQQmbbPBpWFD2mo
    MYHC5WlxUyqV3ka1
    pXsd1QVCbFElZUMr
    • Disconnect the no-fuss ribbon cable connector.

    • The best way is to safely pull the white connector straight out of the socket. Using the tweezers, pull out the white connector that contains the red, green, blue, and black cords connected to it.

    • Remove the battery by gently lifting it out of the device.

  5. ufZalJLo66JcEhXL
    ufZalJLo66JcEhXL
    coXerq6X4NpITPHX

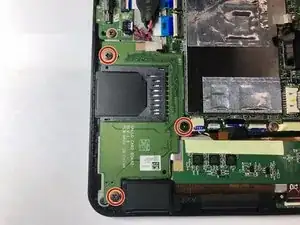

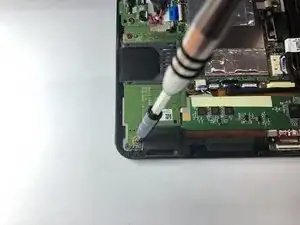

    • Remove three 4mm Phillips #0 screws.

  6. d2loTLAFPsvKntnT
    d2loTLAFPsvKntnT
    Hf2OjjGJNaWCdh3l

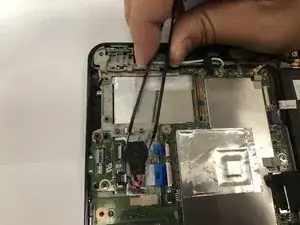

    • Gently lift up the black covered wire and place it on the side, so that it is not in the way of the procedure.

  7. YvmS53hohu14pJBf
    YvmS53hohu14pJBf
    RnjIeqxiTEc3Pyrr
    skQrifhKwNtYBfgN

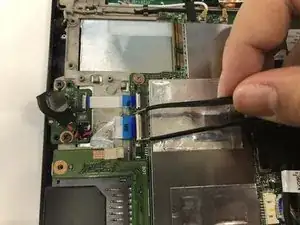

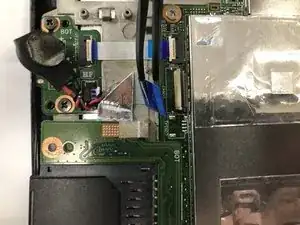

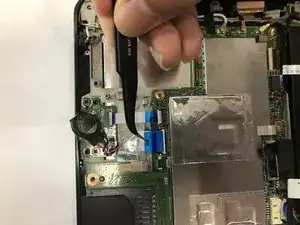

    • When encountering a zero insertion force connector, the best way it to carefully use tweezers to flip up the white locking flap securing the blue-tipped ribbon cable.

    • Then, gently use the tweezers to pull out the blue-tipped ribbon cable from the unlatched connector.

  8. TNX5pHnJyeHBFXBL
    • Use two fingers and gently pull the SD card breakout board from its space.

  9. aUqjhkXvIVe1oJyV
    aUqjhkXvIVe1oJyV
    Q56ukXAjtG3dx114
    XxUKjM5LkoQ2O3DH

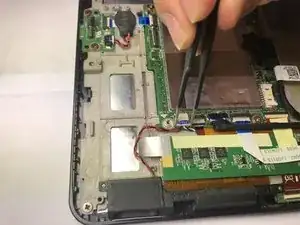

    • There are five ribbon cables in a row that must be disconnected.

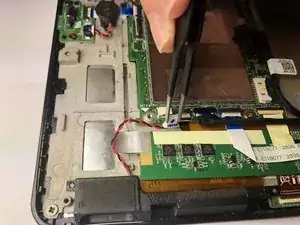

    • Using the tweezers, carefully pull out the first cable straight out of the no-fuss ribbon cable connector.

  10. pkyiJvXjnTZG5XMI
    pkyiJvXjnTZG5XMI
    ZbDYJXhWZtCEI5Xa

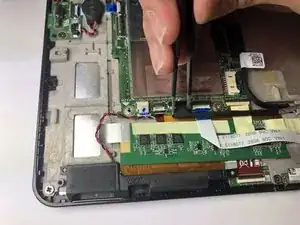

    • Using the tweezers, carefully pull out the cable straight out of the no-fuss ribbon cable connector.

  11. IRuYpuZVVux2mAuf
    IRuYpuZVVux2mAuf
    fNwG2ZLBkcGFPBol

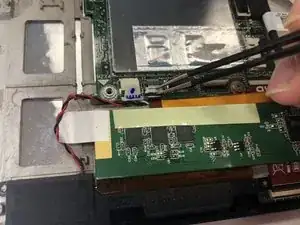

    • When dealing with a zero insertion force connector, the best way it to carefully use a tweezer to flip up the white locking flap holding the blue-tipped ribbon cable.

    • Then, gently remove the ribbon cable from the socket.

  12. WVEQUjHvcm51THwj
    WVEQUjHvcm51THwj
    cDRVP43e1UBeXysi

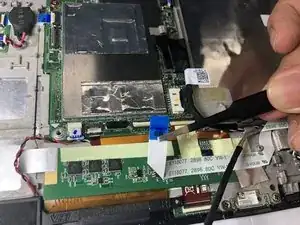

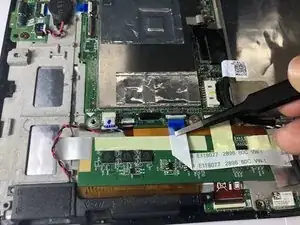

    • When dealing with a zero insertion force connector, the best way it to carefully use a tweezer to flip up the white locking flap holding the blue tip wire.

    • Then gently remove the wire from the socket.

  13. BwpiKNIYKH5YpNqb
    BwpiKNIYKH5YpNqb
    SQkUVUZDSGMQ5VEb
    uA2ysaHHZm4FkIg3

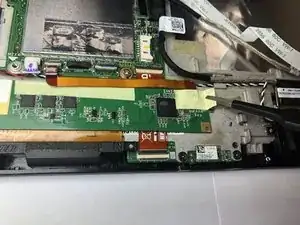

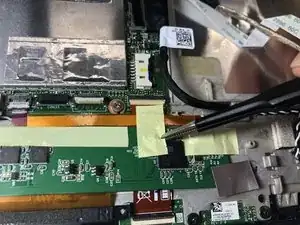

    • Carefully remove the adhesive tapes using the tweezers.

  14. rqEiSDZbGbPnNUFS
    rqEiSDZbGbPnNUFS
    WumHZ3uruP13ikKU
    vRMWWl5wxFLZtLgG

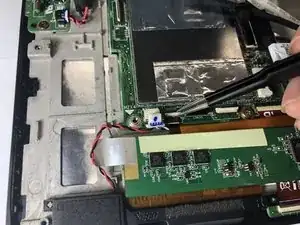

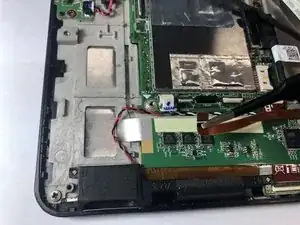

    • Using the tweezers, carefully flip up the locking tab on the Zero Insertion Force connector.

    • Then, gently disconnect the orange ribbon cable.

  15. SorAm4VLHcfHb61X

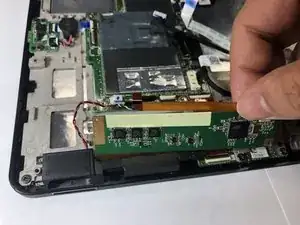

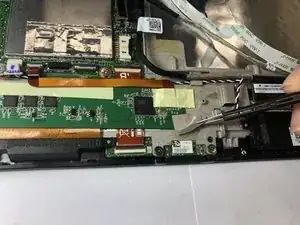

    • After removing all the adhesive strips, gently lift up the sensor board as to not bend it.

  16. E2RtiXleUxxSIUDe
    E2RtiXleUxxSIUDe
    hNKiW1gC31dkMiC5
    MiXlJJ2UjfpwZhVR

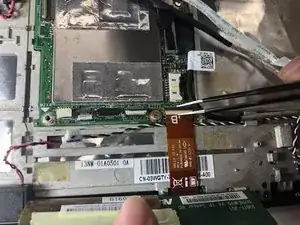

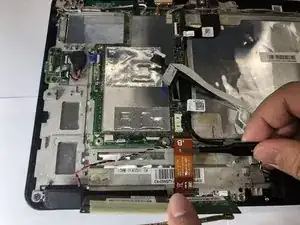

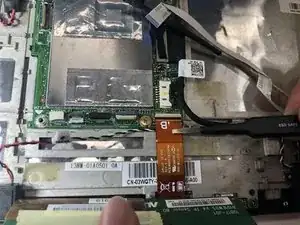

    • When dealing with a zero insertion force connector, the best way it to carefully use a tweezer to flip up the white locking flap holding the orange ribbon cable.

    • Once the white tab is lifted, use the tweezer to carefully pull out the orange ribbon cable.

  17. GPYuaKOnBHTBpsBM
    GPYuaKOnBHTBpsBM
    EPZYMjBa3Tknh3gA

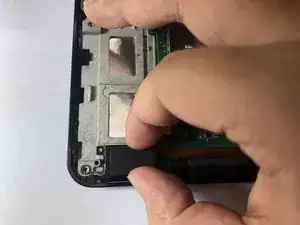

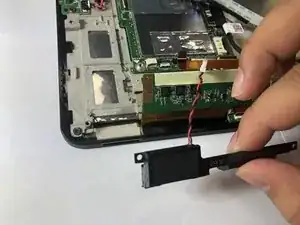

    • Using your fingers, wiggle the speaker until it comes free from the device. Carefully remove it from the tablet.

  18. YgAIMkRxXY3BLRmi
    YgAIMkRxXY3BLRmi
    4sRnbV1YJtePls2B

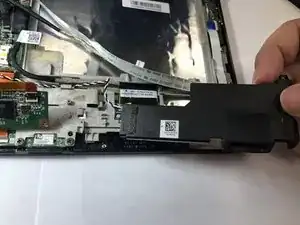

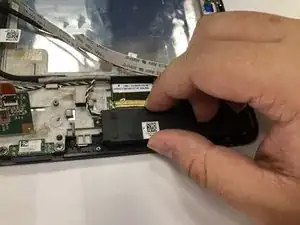

    • Using your fingers, wiggle the other speaker until it comes free. Carefully remove it from the tablet.

  19. jWlwFADZ4JNBbMxA

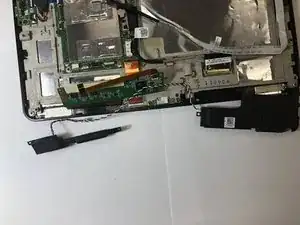

    • Carefully pull out the connected speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
