Dell Streak 7 Battery Replacement

Geschrieben von: Jair Garcia Varela
  • Kommentare: 0
Dell Streak 7 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

40 Minuten

Einleitung

Use this guide to replace the battery in the Dell Streak 7. This guide will show the steps required to replace the battery in the tablet.

  1. kFcdKPEWWRdiOO3r

    • Insert the spudger under the capacitive button panel, and slide the spudger all the way around.

    • You will want to heat up the screen edges with the iOpener to help facilitate removal.

  2. EaZiL3JUshRwMtgs

    • Remove the button cover by lifting the cover away from the tablet.

  3. pkowHHwCYCSKf5Hi

    • Using the Torx screwdriver, remove the 4mm screws.

  4. JKHo6SERDvTjPhZL

    • With the Torx screwdriver, remove the two 5mm screws.

  5. 6yuhOpNFnaodJgAP
    6yuhOpNFnaodJgAP
    YNZJdUNEAPTn3jVV

    • Using the spudger, insert it under the black side panel. Slide the spudger all the way around until the cover piece comes off.

    • With the Torx screwdriver, remove the two 4mm screws.

  6. e4bnjAZGaNLIXbT2

    • Use the spudger to go along the edges of the device and pop out the latches securing the display to the case.

  7. rpHEXxdsVmYOIBPs
    rpHEXxdsVmYOIBPs
    ePCqhlNvRgmjaale

    • Ribbon cables are very sensitive and prone to breaking

    • Disconnect the ribbon cables by unlocking the connector and pulling the cable out slowly.

    • Make sure all the cables are unplugged before opening the device completely. Failure to do so might lead to broken or torn cables.

  8. IrDAVZwqiT2Mq2au

    • Using the spudger, disconnect the ribbon cable by lifting up on the connector.

    • Ribbon cables are fragile and easily broken.

  9. JUtYNPOPYF2eoAMl
    JUtYNPOPYF2eoAMl
    BjyqamLdE3kv1aEP

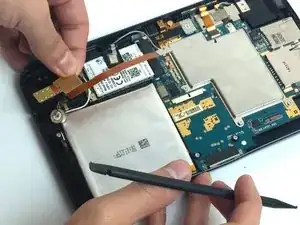

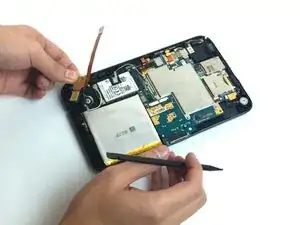

    • Pull the headphone jack up, away from the case.

  10. kCSpQ3dXJARnuccY
    kCSpQ3dXJARnuccY
    BNqLUsaFnscNq4RR

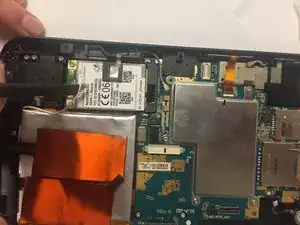

    • With the spudger, disconnect the antenna cable located on the module.

  11. xqVd2WkucRfo4uTg
    xqVd2WkucRfo4uTg
    1IBAgVGMKjigAAIm

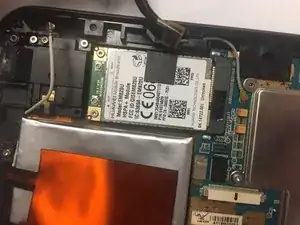

    • Using tweezers, remove the tape connected to the GSM module.

  12. Mn6G2HjTlZBZulNe
    Mn6G2HjTlZBZulNe
    IAyLJIUYCpXZFGR1

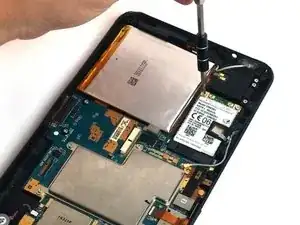

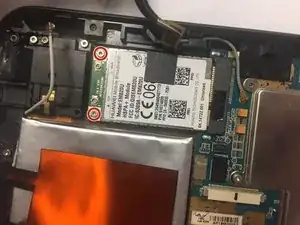

    • Remove the two 3mm screws securing the GSM module. Use the Torx screwdriver.

  13. V4jtN2Z4AmjFRNMZ

    • Disconnect the GSM module by lifting the module up, out of the case.

  14. Cx22vDKA5ggAX65p
    Cx22vDKA5ggAX65p
    4GgZI4ElXwgVLvNZ
    dMWJYrnmtROHkFkv

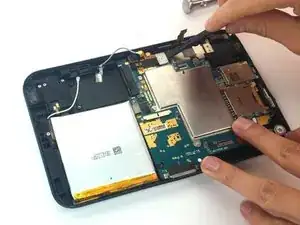

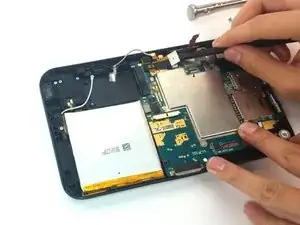

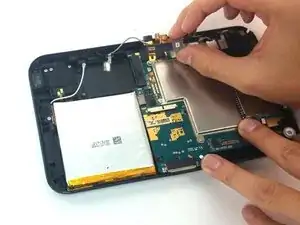

    • Using the spudger, disconnect the front camera by lifting up on the connector.

  15. NcsJgnDmsCPovKtX

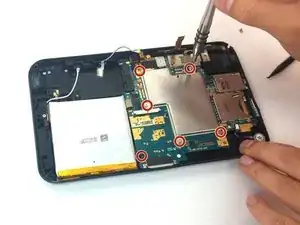

    • Using the Torx screwdriver, remove the six 3mm screws .

  16. uELv2RGG5LhXPkfX
    uELv2RGG5LhXPkfX
    iIyCXhkvuuuwTZnd

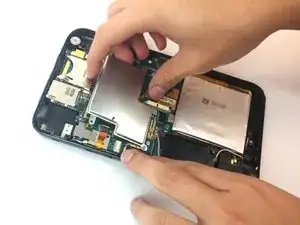

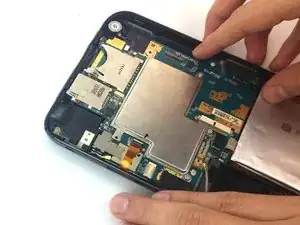

    • Lift up the metal cover.

  17. YxmvmbstlsFPJauk

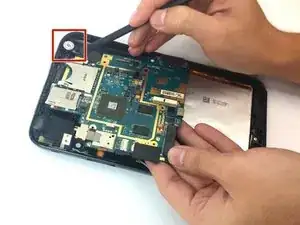

    • Use the spudger to lift the vibration motor out of the case.

  18. vsYfC1qcBiG6Peco

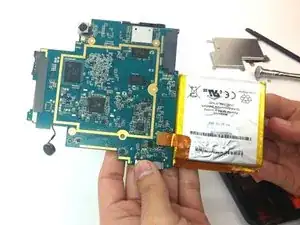

    • Pull out the motherboard and the battery.

  19. NCprta6TTNWeNile
    NCprta6TTNWeNile
    HrwxHBJLRVyaY55N

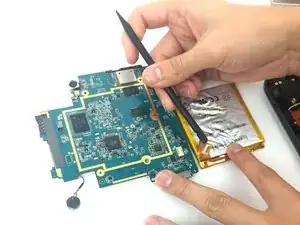

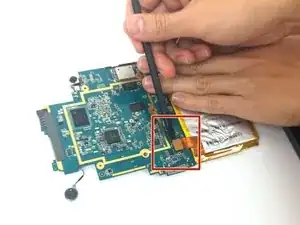

    • Use the spudger to lift up and detach the cable connecting the battery to the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
