Einleitung

  1. SvXDyfGDsjR34vdu
    • Slide the battery release latch to the side.

    • Slide the battery out of the battery bay.

  2. Vqrwcj4W3tuIiKSQ
    • Loosen the seven captive screws on the base cover and lift the cover off the computer at an angle as shown in the figure.

  3. oFeP1UhDmBubaxJZ
    • Remove the two screws on the hard drive assembly.

  4. 6OTqIPd5oZRQSFYw

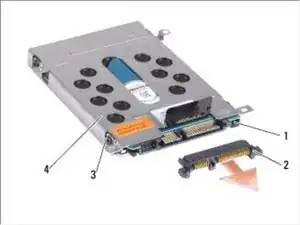

    • Pull the pull tab to disconnect the hard drive assembly from the system board connector.

    • Pull the interposer to detach it from the hard drive.

    • Remove the four screws (two on either side) to detach the hard drive cage from the hard drive.

    • Lift the hard drive cage off the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
