Dell Studio 1440 KeyBoard Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Studio 1440 KeyBoard Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 20 Minuten

Einleitung

  1. EyMyCSpLUDKthQVq

    • Slide the battery release latch until it clicks into place.

    • Slide the battery out of the battery bay.

  2. TmFtKMI1LlZF3cAZ

    • Turn the computer over and open the display.

    • Ease the keyboard surround up using your fingers or a plastic scribe.

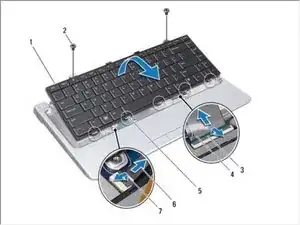

  3. YrTlYmLWdMkpXEai

    • Lift the keyboard surround off the computer.

    • Remove the two screws at the top of the keyboard.

    • CAUTION: The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the keyboard.

    • Carefully slide the keyboard out of the computer and turn it over as indicated in the following illustration.

    • CAUTION: Be extremely careful when removing and handling the keyboard. Failure to do so could result in scratching the display panel.

  4. eJAKLwLdIfB3XmWY

    • Release the keyboard cable connector latch and disconnect the keyboard cable from the system board connector.

    • For backlit keyboards, release the keyboard backlight cable connector latch to disconnect the keyboard backlight cable from the system board connector.

    • Lift the keyboard off the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
