Einleitung

  1. UaVLfHXZEFZZILnq
    • Slide the battery release latch until it clicks into place.

    • Slide the battery out of the battery bay.

  2. vkjVxiXUe2UbBOoM
    • Turn the computer over and loosen the six captive screws on the base cover.

    • Lift the base cover off the computer.

  3. aDvJN21UAwIKWtEp
    • Remove the two screws that secure the hard drive to the computer base.

    • Slide the hard drive away from the connector using the pull-tab.

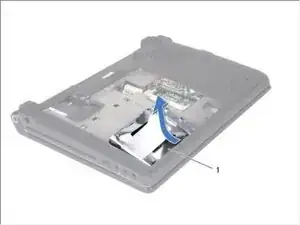

  4. 26sYLUSQaaRUY1T1
    • Tilt the hard drive by 45-degrees and lift it out of the computer base.

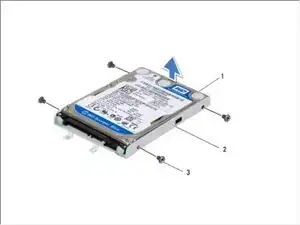

  5. F2AwY4lLJ2ChYjfK
    • Remove the four screws that secure the hard drive to the hard drive bracket.

    • Lift the hard drive off the hard drive bracket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
