Einleitung

Here we'll cover how to remove the bottom hatch of the laptop, how to remove the drive caddy, and how to remove the actual hard drive.

  1. gbRLjGVSS6QFwdWN
    gbRLjGVSS6QFwdWN
    uAQUDXMAhxAnCwls
    GZjIhpTljWvDINOq

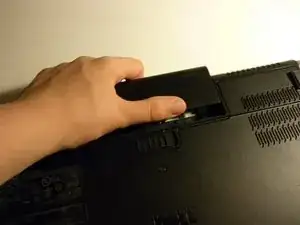

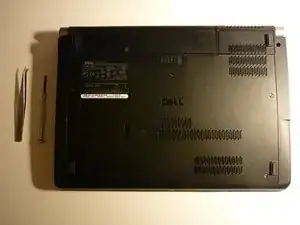

    • Gather tools and materials

    • Flip over laptop, and remove battery as a safety precaution

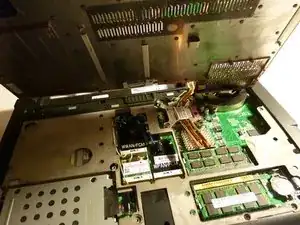

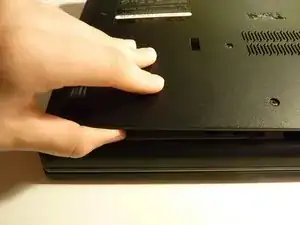

  2. 2WOQCPHRUfC6D1oQ
    2WOQCPHRUfC6D1oQ
    JNdjBhtWpsBiHluW
    eFxDf5v6NLqc1yZO

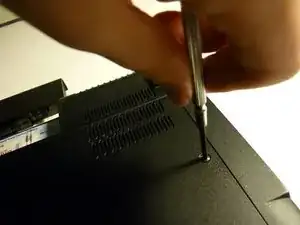

    • If you look at the bottom of the laptop, you will notice that there is a panel that is removable

    • Unscrew the screws that hold the panel in place

    • Unscrew the screws until they are loose. They will not come out of the panel

    • After loosening all the screws, lift the panel up from the main chassis

    • You may need to use a flathead screwdriver to lift the panel

  3. rglyraQHIHkI3Dls
    rglyraQHIHkI3Dls
    euUV4gSHQ6eOapXu
    ZYECstR3SEQnbJmE

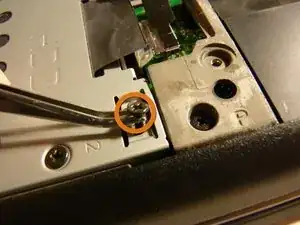

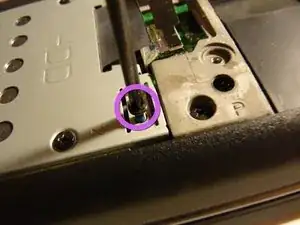

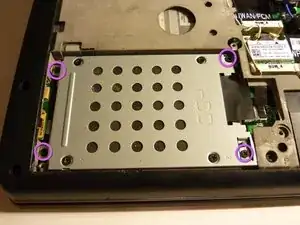

    • Now we have access to the internals of the laptop, pretty neat

    • If the battery is away from you, the hard drive should be closer towards you on the left

    • Start by removing the screws holding the caddy into the chassis

    • These screws have a more rounded top, and are longer

    • Once loosened, you can remove with your fingers or tweezers, and then set them aside

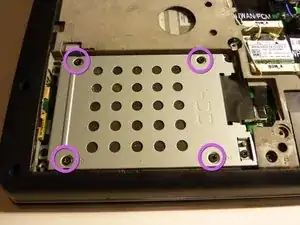

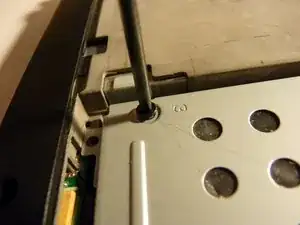

  4. B6DxnjIGRGxCOLuT
    B6DxnjIGRGxCOLuT
    EDLEvducNEFuwGZN
    f6cBslYtQjIe2NCX

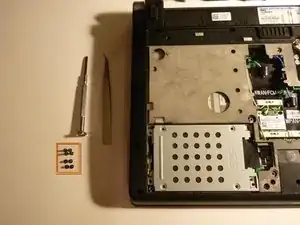

    • Now we remove the screws holding the drive to the caddy

    • These screws are have a flatter head, and are shorter

    • These are standard drive screws that are used to mount any hard drive to a mounting device, such as brackets to put it in a desktop computer

    • The manufacturer likes to put these in very tightly, and it may take some effort to remove. I suggest using a screwdriver with a bigger handle, not the one I am using

    • Set these screws aside, apart from the screws we removed in the last step

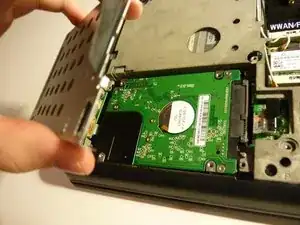

  5. MZGUClahLxTEJ2Ea
    MZGUClahLxTEJ2Ea
    LXTMUU5EmTcKl1CY
    HqPeNCQQEYV6rX6e

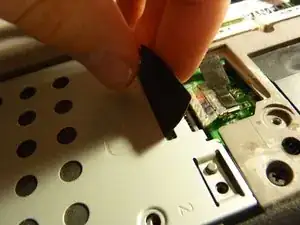

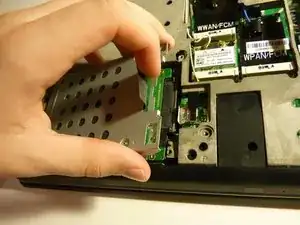

    • Now that the screws are removed, the caddy can be removed from the chassis and drive

    • Pull the black tab on the right side of the caddy, and pull up

    • It might take some wiggling but it should come out

  6. jLXxMtNxWmcVLuaJ
    jLXxMtNxWmcVLuaJ
    qcuC4gRB3kQd5uNk
    qoLVP1HO6SNLrIAq

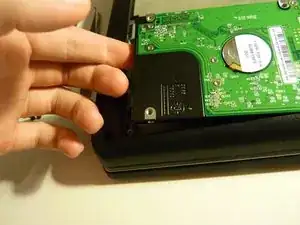

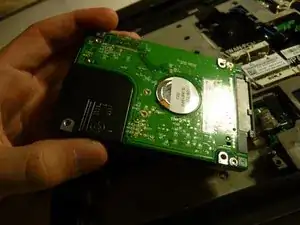

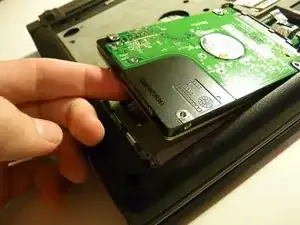

    • Now that the caddy is removed, we can lift the drive out of it's place

    • It should lift out easily, but it will still be attached with a cable

    • Set it aside on top of the optical drive (the metal surface)

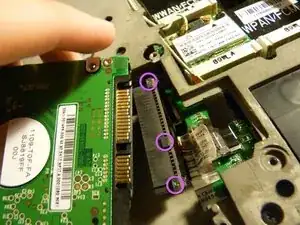

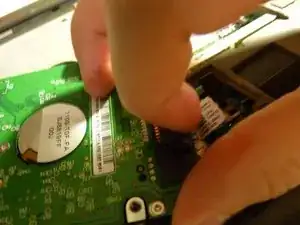

  7. ITWYHuEDb1QBHkk1
    ITWYHuEDb1QBHkk1
    jYALLytyTAHDVXaI
    JkqVGiLYvJTg3sYv

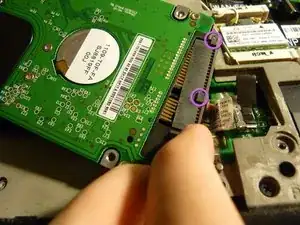

    • Now that the drive is removed, we have to remove the cable connecting it to the motherboard

    • It may be hard to do at first, but there are some groves that you can use to hold on to

    • Pull the connector from the drive gently

    • Wiggling the connector a bit does help a little

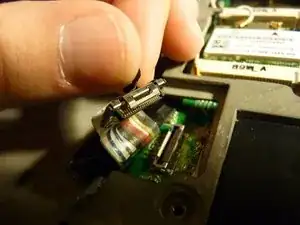

  8. Te2RggPfwALAvJrR
    Te2RggPfwALAvJrR
    C4jJqF5Fd3Xr6K5R
    34pgcTiob2BoUJjM

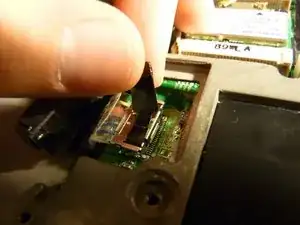

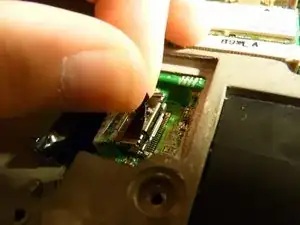

    • If you found it difficult to remove the drive or the cable connecting the drive to the motherboard, you can remove the whole cable at once

    • If you look to the right of the drive, you will see another tab, this one is black, but I've also seen blue ones

    • Pull this tab gently in order to remove the cable

    • Again, wiggling also helps

  9. X51dA6WIiwgHDnTr
    X51dA6WIiwgHDnTr
    DrXYu1eJOLvbBZD2

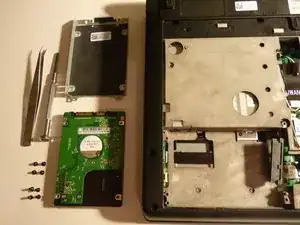

    • If you removed the drive using steps 1-7 then what you have should be left in picture 1

    • If you had trouble removing the drive, and you went through to step 8, then the parts remaining will be in picture 2

    • The drive should have a SATA interface, so you should be able to mount it into another computer using 2.5" to 3.5" converter brackets and a SATA cable

Abschluss

To reassemble your device, follow these instructions in reverse order.
