Einleitung

Installing a new keyboard in your Dell Studio laptop is easier than you might think, it just involves some basic screw removal and knowledge. This guide can also be used to simply fix an existing keyboard that may be malfunctioning.

  1. t2xsYhSjlO1GVNQW
    t2xsYhSjlO1GVNQW
    dC3MA64keLNmSo31
    bMNyZ1R5LQfwMLTh

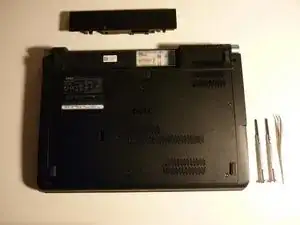

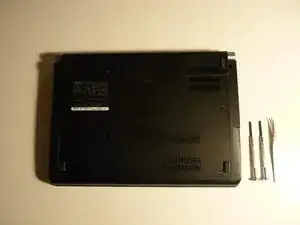

    • Gather materials and tools

    • Flip laptop over

    • Remove battery and power cord before doing anything

  2. VLLCTk5wHqAUCv5I
    VLLCTk5wHqAUCv5I
    IPMbfpmjMZomgmny

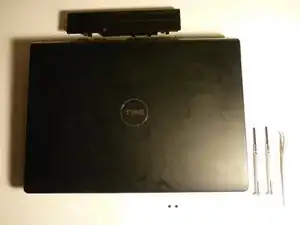

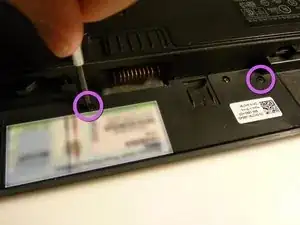

    • Where the battery was, take out the two screws with the letter "K" next to them

    • Save the screws somewhere safe, and flip the laptop rightside up

  3. dnv2yPUNMNpmJqpp
    dnv2yPUNMNpmJqpp
    sLKjZTRpWkVsb4gO
    5iSQZNEZQoMJIj4w
    • Open the laptop

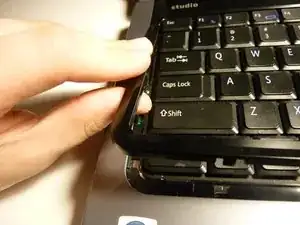

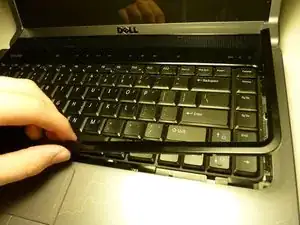

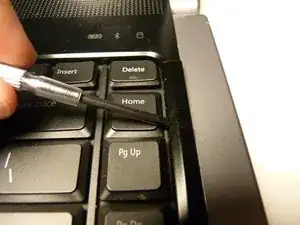

    • Take the flathead screwdriver, and put it under the bezel that goes around the keyboard

    • If you're simply fixing the existing keyboard, be careful not to pry a key off. They are close to impossible to get back on

    • Pry the bezel out of the frame. It might take some effort, but this is the correct method

    • Once one part has snapped out of the frame, continue to carefully remove the rest of the bezel

  4. L1adWX5OrRUXFpPe
    L1adWX5OrRUXFpPe
    13Ltv1NlaxRQJdH1
    4ZLoQXVCt3wNS1vp

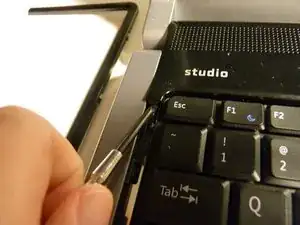

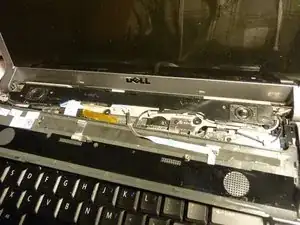

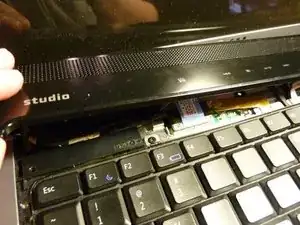

    • Once the bezel is removed, put the screwdriver under the media control bar

    • Continue to apply pressure, prying it out of place; it should snap out easy

    • Do not rip it out without precaution. It's attached with a delicate ribbon cable, and if damaged, you'll be replacing more than the keyboard

    • Once snapped out of it's place, flip it over gently onto the keyboard

  5. X1ULINTVPQ1TyfPh
    X1ULINTVPQ1TyfPh
    DAWSRgEvMJhSbNOl

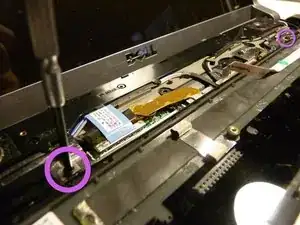

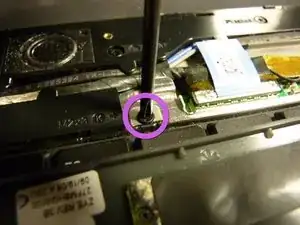

    • Unscrew the two screws at the top of the keyboard using the Phillips screwdriver

    • Set the screws aside along with the other ones. They are the same size, no need to worry about getting them mixed up

  6. anEfm5ikxfRMBuHL
    anEfm5ikxfRMBuHL
    1CDRW3JSb4KZC1Dw
    RHpbUc1nvCcWEkCH

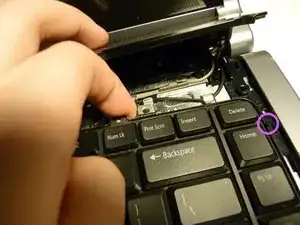

    • Now that the screws are out, lift the top of the keyboard

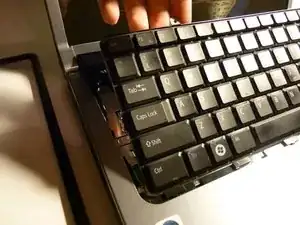

    • You will notice some resistance due to clips on the sides. Lift the side of the keyboard gently, taking the board out of the clip without breaking it

    • Once both sides are out of the clips, slide the keyboard forward a bit

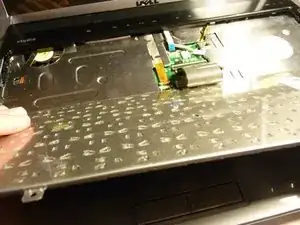

    • Flip the keyboard over, minding the ribbon cable, over onto the palmrest

  7. 6LSVSlU1dhxQVLXJ
    6LSVSlU1dhxQVLXJ
    kHxaGloFAGYpxbfN
    rtVpTHQoJ4lFKOV2
    • Now that they physical keyboard is removed, we can focus on the ribbon cable

    • Caution, this step can make or break the connection point, so be gentle

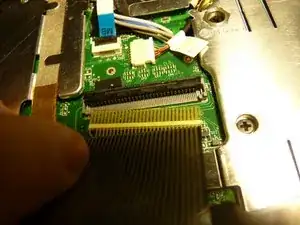

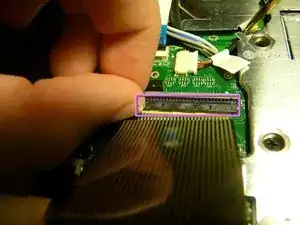

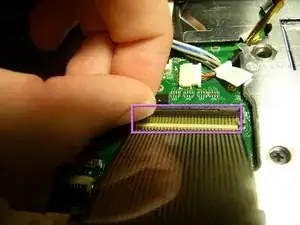

    • Gently flip the black hatch part of the connection point upwards

    • Remove the ribbon cable from the connection point

    • When re-installing the cable, be sure that it is inserted all the way, and that the hatch is closed. If not, it may malfunction, or not work at all, and you will have to do this all over again

  8. RAjGZu6xRBSB5cZr
    RAjGZu6xRBSB5cZr
    AnnX4SsTRn2aiSR3

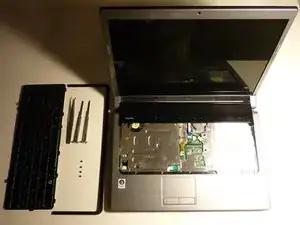

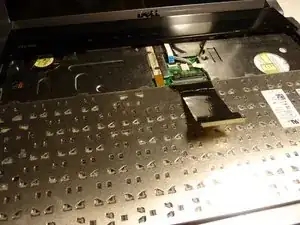

    • Congratulations, you've successfully removed the keyboard!

Abschluss

To reassemble your device, follow these instructions in reverse order.
