Dell Studio 1537 RAM Replacement

Geschrieben von: Zach Dylag
  • Kommentare: 0
Dell Studio 1537 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

  1. 3WhfGDoprCuRGC3P
    3WhfGDoprCuRGC3P
    aNXrCiZMGtILoXJZ

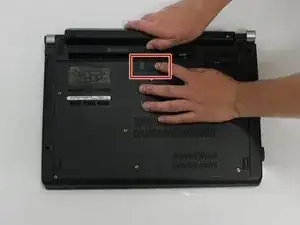

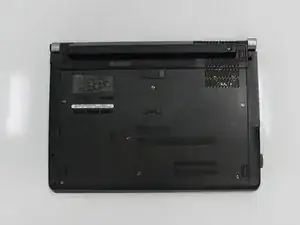

    • Ensure the laptop is turned off and unplugged before attempting to remove any piece.

    • Place the laptop lid down so the underside is visible.

    • Pull battery release switch and gently pull the battery directly away from the switch.

  2. 6nGygDCtk3aDalYJ

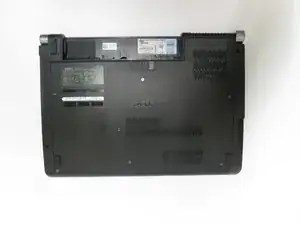

    • Identify the back cover of the laptop.

  3. DPNX2EtHNyWD25JV

    • Unscrew and remove all of the 6.0mm screws with a Phillips #1 screwdriver.

  4. QhAQ1XYdYuCKe5BT

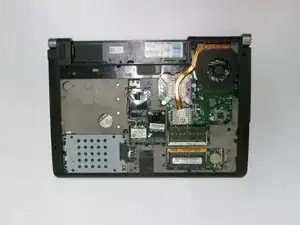

    • Lift the back cover off of the laptop.

  5. 3q5JVcjSuXfU23HI
    3q5JVcjSuXfU23HI
    2LrWFpePSHCoCOcJ

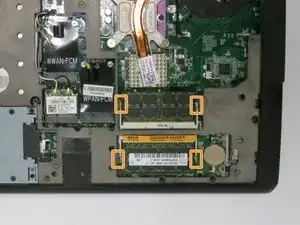

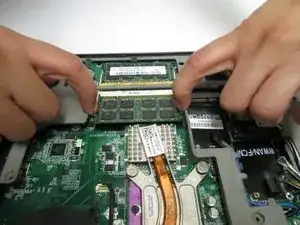

    • Pull outwards on both of the tabs for one of the RAM slots.

    • The RAM stick should pop up at an angle after this.

  6. NJ2DesQvbsVGMVU5
    NJ2DesQvbsVGMVU5
    mDu2UrAE4vE3c53O

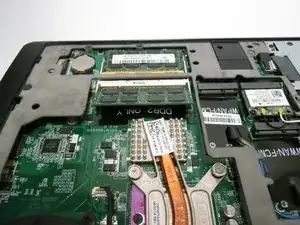

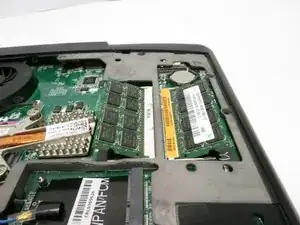

    • Pull the RAM stick out of the slot.

    • Repeat with the remaining RAM stick.

Abschluss

To reassemble your device, follow these instructions in reverse order.
