Dell Studio 1555 Back Panel Removal

Geschrieben von: Josh Boone
  • Kommentare: 0
Dell Studio 1555 Back Panel Removal

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

2 Minuten

Einleitung

To be able to access certain components like the hard drive or motherboard of the Dell Studio 1555, the back panel will need to be removed. A Phillips 1 screwdriver is required for this guide.

  1. GUxyTjyjDCYNuDQA

    • Turn off and unplug the laptop.

    • Failure to properly turn off device before handling the battery could result in electrical shock.

    • Flip the laptop so the underside is facing up with the battery closest to you.

  2. QaZTFp1ECVjRYbVw
    QaZTFp1ECVjRYbVw
    LNVdNcXlrLCiuDSV
    6JW6vRsYPWwjkEsJ

    • Slide the locking switch to the left to release the battery.

  3. NR1tskAEhXtQl4LX

    • Gently pull the battery away from the device.

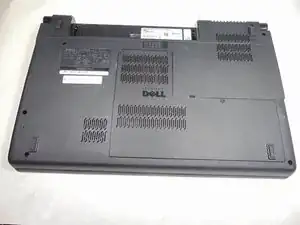

  4. vbybdaCMrQMn3NjC
    vbybdaCMrQMn3NjC
    rv1Fr2QCyZ2lHZgB
    4RHpC1ZBLWP35eWU

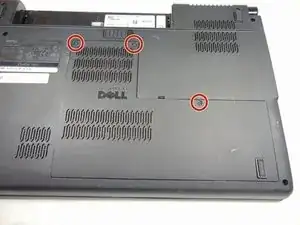

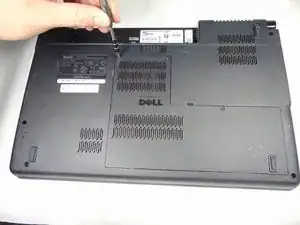

    • Loosen the three 5mm screws from the back panel using the # 1 Philips screwdriver.

    • The three 5mm screws will stay in place on the back panel.

  5. xAFgcoIHmE4vMjIX

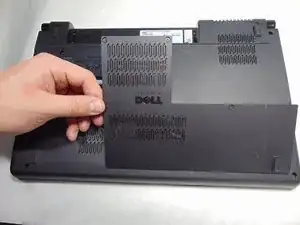

    • Carefully remove the separated back panel.

    • If the back panel is difficult to remove and feels like it is going to break, DO NOT force it. Check to confirm that all the screws are unscrewed all the way before attempting again.

Abschluss

To reassemble your device, follow these instructions in reverse order.
