Dell Studio 1555 Display Replacement

Geschrieben von: Josh Boone
  • Kommentare: 0
Dell Studio 1555 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

If your screen becomes unresponsive you may need to replace it. A Philips 1 screwdriver and a plastic opening tool are required for this guide.

  1. GUxyTjyjDCYNuDQA

    • Turn off and unplug the laptop.

    • Failure to properly turn off device before handling the battery could result in electrical shock.

    • Flip the laptop so the underside is facing up with the battery closest to you.

  2. QaZTFp1ECVjRYbVw
    QaZTFp1ECVjRYbVw
    LNVdNcXlrLCiuDSV
    6JW6vRsYPWwjkEsJ

    • Slide the locking switch to the left to release the battery.

  3. NR1tskAEhXtQl4LX

    • Gently pull the battery away from the device.

  4. OFR136XPBD2HTeH2
    OFR136XPBD2HTeH2
    gHbwue34ji4dSDQH

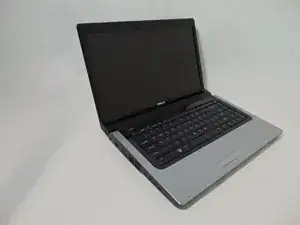

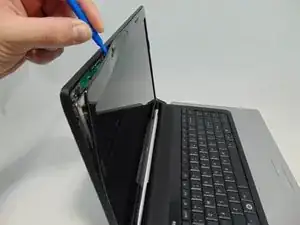

    • Insert a plastic opening tool between the bezel and the display cover.

    • Wiggle it to the release the latches.

    • Separate the bezel from the cover.

  5. pNtWcRkUWQHVUGTb
    pNtWcRkUWQHVUGTb
    CLvbXhTArWBVbn2j

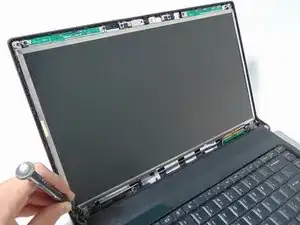

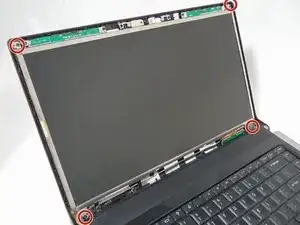

    • Remove the four 3 mm screws securing the LCD using the #1 Phillips screwdriver.

  6. CbKWnRHKOm5ngmAD

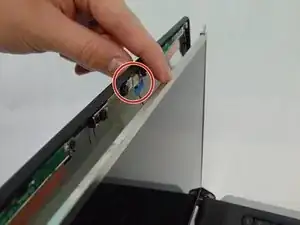

    • Separate the LCD assembly from the display cover so you will be able to access the webcam cable.

    • Unplug the camera cable.

  7. DSYSTwWHTVEDBIqF
    DSYSTwWHTVEDBIqF
    ih1GavxnaG4TGfpC

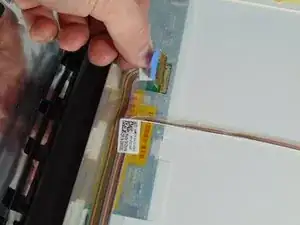

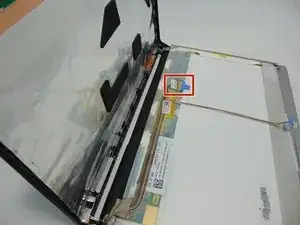

    • Place the LCD face down on the top cover.

    • Remove the sticky tape securing the video cable connector.

    • Unplug the video cable from the screen.

  8. JFwctA6mBLEa4nrv
    JFwctA6mBLEa4nrv
    32UTd4QtkfpGvJXC
    cmTrdOEUOkuqFXnP

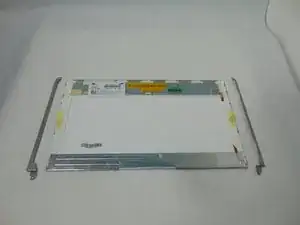

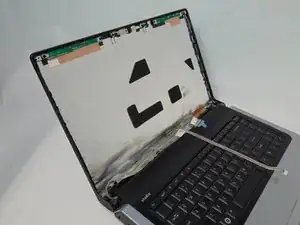

    • Remove the LCD from the laptop.

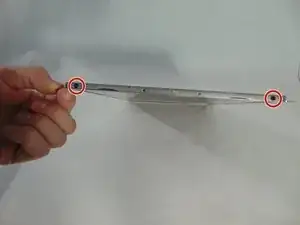

    • Remove the four 3mm screws holding the mounting brackets using the #1 Phillips screwdriver. Two on each side.

    • You will have to transfer the mounting brackets to the new screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
