Dell Studio 1555 Keyboard Replacement

Geschrieben von: Hunter Tuck
  • Kommentare: 0
Dell Studio 1555 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

You may need to replace your keyboard due to failure. You will need a Phillips 1 screwdriver for this guide.

  1. GUxyTjyjDCYNuDQA

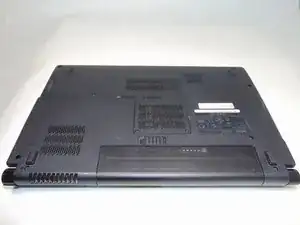

    • Turn off and unplug the laptop.

    • Failure to properly turn off device before handling the battery could result in electrical shock.

    • Flip the laptop so the underside is facing up with the battery closest to you.

  2. QaZTFp1ECVjRYbVw
    QaZTFp1ECVjRYbVw
    LNVdNcXlrLCiuDSV
    6JW6vRsYPWwjkEsJ

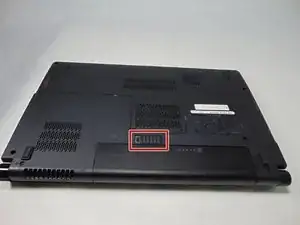

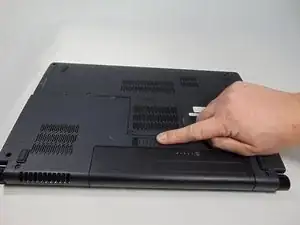

    • Slide the locking switch to the left to release the battery.

  3. NR1tskAEhXtQl4LX

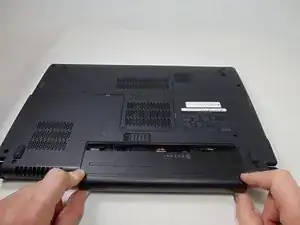

    • Gently pull the battery away from the device.

  4. gFdJipKkEJm1KZQQ

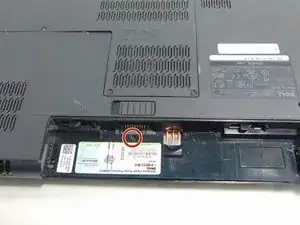

    • Remove the single 3mm screw underneath the battery with a #1 Phillips screw driver, which holds the media control cover.

  5. MyriwhHarGtjG6YQ
    MyriwhHarGtjG6YQ
    XfZiMKahD2KoqIcn

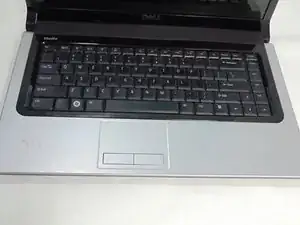

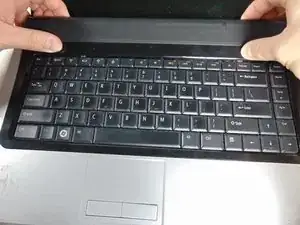

    • Flip the laptop over and flatten it out as much as possible.

    • Unsnap the media control cover from the laptop starting nearest to the display.

  6. B3MPhNHkBJWtIkfr
    B3MPhNHkBJWtIkfr
    JLcq6aWKuyQTiDRW

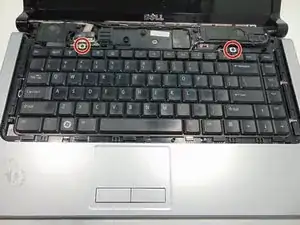

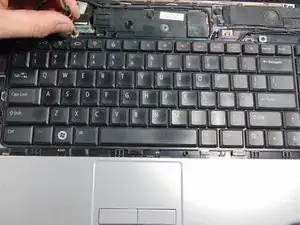

    • Remove the two 3mm screws with a #1 Phillips screwdriver, holding down the keyboard.

  7. keHWWeCSoxXHC3DM

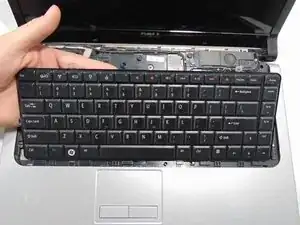

    • Slowly lift the keyboard away from the base.

    • If you pull to hard you risk breaking the keyboard cable connector from the motherboard.

  8. QeaoNZo2s2ETW13S
    QeaoNZo2s2ETW13S
    ZgK5wfrsjm5RGLsr
    cNlKDHpDbgABQsZV

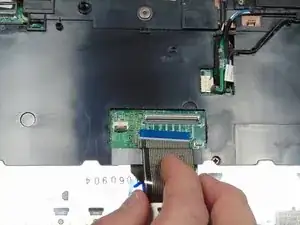

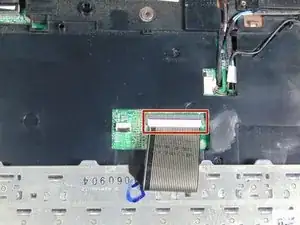

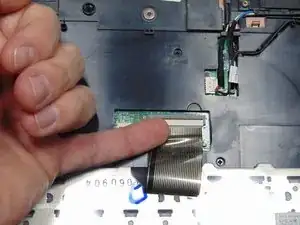

    • Flip up the black tab on the keyboard ZIF connector and unplug the cable.

  9. KFZNaZ6Wh4ibcgPW

    • Remove the keyboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
