Dell Studio 1555 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

6 Minuten

Einleitung

The memory of your laptop may become corrupted or full and need to be replaced. A Philips 1 screwdriver is required for this guide.

  1. GUxyTjyjDCYNuDQA

    • Turn off and unplug the laptop.

    • Failure to properly turn off device before handling the battery could result in electrical shock.

    • Flip the laptop so the underside is facing up with the battery closest to you.

  2. QaZTFp1ECVjRYbVw
    QaZTFp1ECVjRYbVw
    LNVdNcXlrLCiuDSV
    6JW6vRsYPWwjkEsJ

    • Slide the locking switch to the left to release the battery.

  3. NR1tskAEhXtQl4LX

    • Gently pull the battery away from the device.

  4. vbybdaCMrQMn3NjC
    vbybdaCMrQMn3NjC
    rv1Fr2QCyZ2lHZgB
    4RHpC1ZBLWP35eWU

    • Loosen the three 5mm screws from the back panel using the # 1 Philips screwdriver.

    • The three 5mm screws will stay in place on the back panel.

  5. xAFgcoIHmE4vMjIX

    • Carefully remove the separated back panel.

    • If the back panel is difficult to remove and feels like it is going to break, DO NOT force it. Check to confirm that all the screws are unscrewed all the way before attempting again.

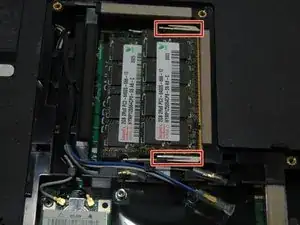

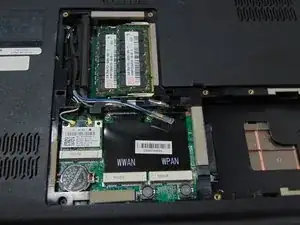

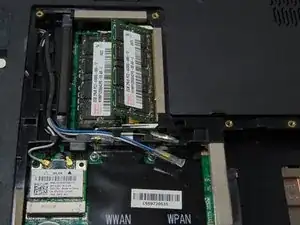

  6. RT1HZlvK1mmJSiAK
    RT1HZlvK1mmJSiAK
    JRsOf6e4PXJqA3Nm
    3ROwjYHrAXBClFMP

    • Press the tabs outwards to release the tabs. The memory stick is spring loaded and will be released at an angle.

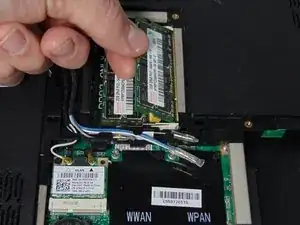

  7. DZgyWRMJHuAHDijf

    • Gently remove the memory stick from the slot.

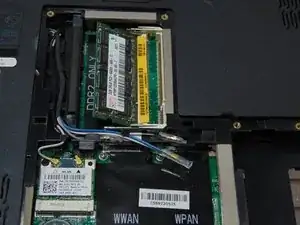

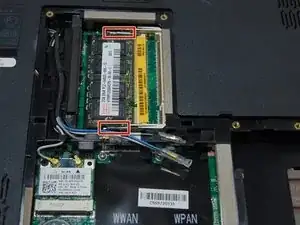

  8. EqP1Gg31kHOPBuJC
    EqP1Gg31kHOPBuJC
    LhNRmcuiFEX5mVZ6

    • Once the first memory stick is removed, press the tabs outwards to release the tabs. The memory stick is spring loaded and will be released at an angle.

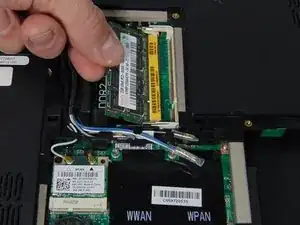

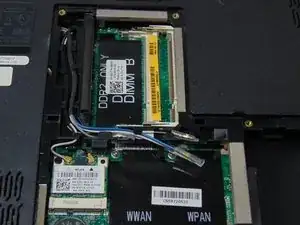

  9. GxOmJ3WjjQKJdsXg
    GxOmJ3WjjQKJdsXg
    qyB4HHdrXChlUxMQ

    • Gently remove the memory stick from the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
