Dell Studio 1558 RAM Replacement

Geschrieben von: Nic Birky
  • Kommentare: 0
Dell Studio 1558 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 - 30 Minuten

Einleitung

RAM is crucial for a computer to function properly. Faulty RAM can cause a variety of issues in a computer, from onscreen graphical errors to random crashes that seemingly occur out of nowhere.

The RAM modules are easy to access on the Dell Studio 1558. It is important to properly disengage the holding arms in order to avoid damaging the components.

  1. ZNVf6R4TXx4GMp4m
    ZNVf6R4TXx4GMp4m
    6NdhXXFtwtWJcptx

    • To begin, flip over the laptop.

  2. wCtQm4lAx1ylhKZr

    • Next, slide the slider to the right and hold it in place.

  3. pQcXHIEVtltNglVn
    pQcXHIEVtltNglVn
    TyHETZgHkLVSdrNq

    • While holding down the slider, gently remove the battery.

  4. bH1eKCv3vZSp4FGJ

    • The battery has been successfully removed.

  5. qvyJ56jNUlPZsuji
    qvyJ56jNUlPZsuji
    BhCVHpjRUxePJPwG
    dGGrqMmuDAASSTN5

    • Make sure the battery is properly removed. If not, you could experience shocks.

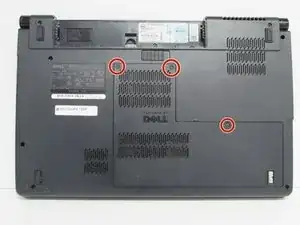

    • Unscrew the three screws (Phillips #0) on the back panel to reveal the innards underneath the panel. It is helpful to keep these screws in the holes of the back panel.

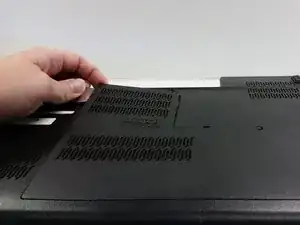

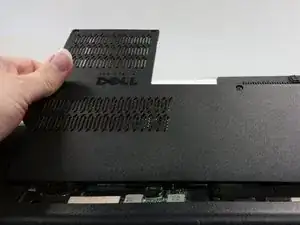

    • Pry the back panel off and set aside.

    • A little bit of force may be necessary in removing the panel as there are some minor plastic clips holding the panel in place in addition to the screws.

  6. qdb631FWvwVZBRk2
    qdb631FWvwVZBRk2
    Xm6knZjwXff6FFUa

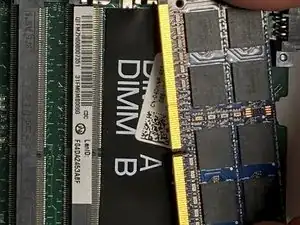

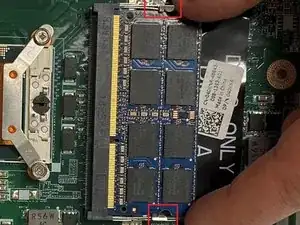

    • Two small tabs are located on either side of the RAM stick. Push those tabs inwards to release the RAM stick.

    • A new RAM stick can be inserted by inserting the golden pins into the slot, and then lowering the rest of the RAM stick into the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
