Einleitung

  1. KNuwe6gDlRUCHOWK
    • Slide the battery release latch to the side. {2}

    • Slide the battery out of the battery bay. {1}

  2. 4ETvH246Wb4PQPf1
    • Loosen the ten captive screws on the base cover and lift the cover off the computer at an angle as shown in the figure.

  3. M1JyNExAod2OIb2S
    • Remove the three screws securing the hard drive assembly to the computer base.

    • Pull the blue pull-tab to disconnect the hard drive assembly from the system board connector.

    • Lift the hard drive assembly out of the computer base.

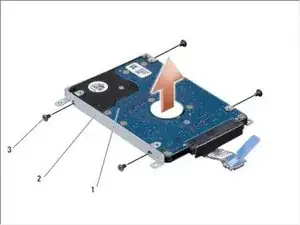

  4. IoQLdOLolaOTcTSe
    • Remove the four screws that secure the hard drive bracket to the hard drive and remove the bracket.

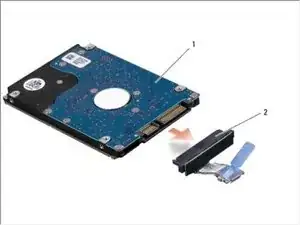

  5. tONKKoOyhenbof5p
    • Pull the interposer to disconnect it from the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
