Dell VRC100-R Daughterboard Replacement

Geschrieben von: Steven Pineda

Kommentare: 1

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 Minuten

Einleitung

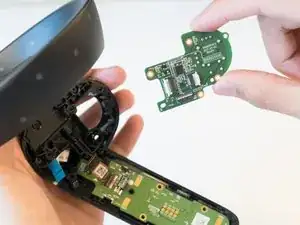

If you need to reinstall a new joystick unit, access the daughterboard with this guide. Since the daughterboard communicates with the motherboard, you can also replace the daughterboard if your controller does not carry out its functions properly. For this guide, you will need a plastic opening tool and a Phillips #0 screwdriver head. You will not need to do any difficult steps, but open the ZIF connectors carefully.

Werkzeuge

Schritt 1

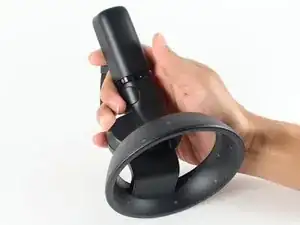

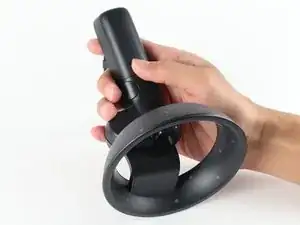

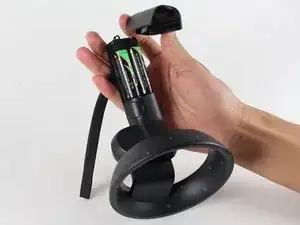

Orient your controller so that the black ring is on the bottom and the buttons are facing away from yourself.
Place your thumb on the small arrow that is on the controller's battery cover and firmly push upwards.
Slide the cover off and separate it from the controller.

Schritt 2

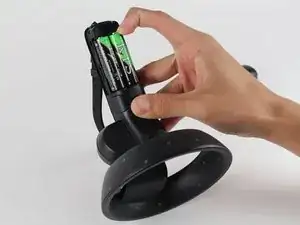

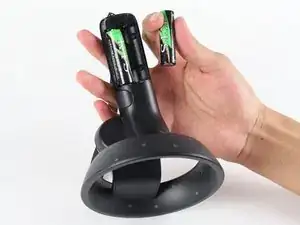

Remove the right battery by pushing the positive end down and pulling the battery out toward yourself.
Repeat the procedure for the left battery.

Schritt 3

Hold the joystick down with your left thumb to make space for the plastic opening tool.
Insert the plastic opening tool into the circle above the joystick and pry upwards to lift the front panel.
Slide the plastic opening tool around the perimeter until you can lift the front panel.
You may hear a popping noise when you pry off the front panel.

Schritt 4

Grab the joystick and pull away from the controller to remove it.

Schritt 5

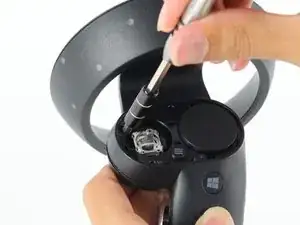

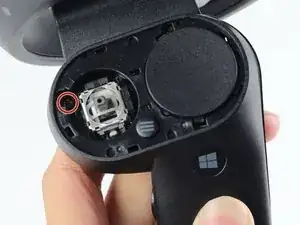

Remove one 6mm Phillips #0 screw.

Schritt 6

Turn your controller over and orient it so that the thin side is on the top.

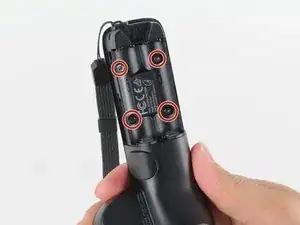

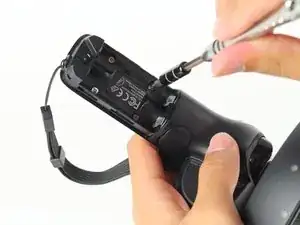

Remove four 4mm Phillips #0 screws.

Schritt 7

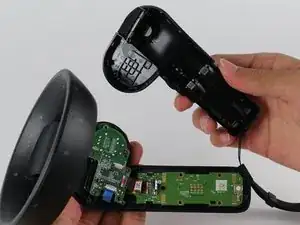

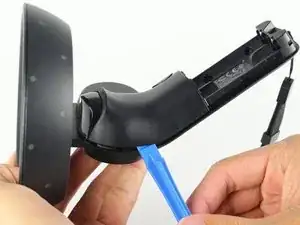

Turn your controller 90 degrees clockwise and insert a blue plastic opening tool into the crease of the back panel.
Push down on the end of the plastic opening tool closest to you to lift the panel up.
Slide the plastic opening tool around the perimeter of the back panel until you can remove it.
You may hear loud popping noises as the back panel separates from the controller.

Schritt 8

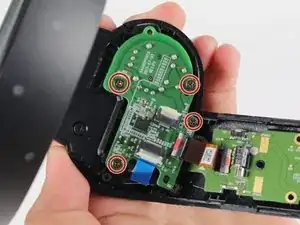

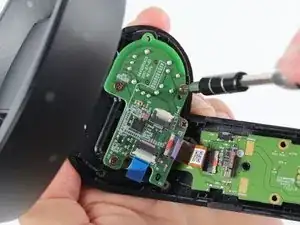

Remove four 4mm Phillips #0 screws.

Schritt 9

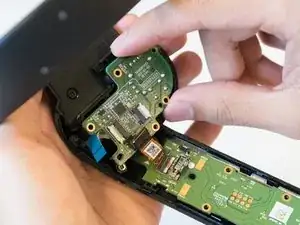

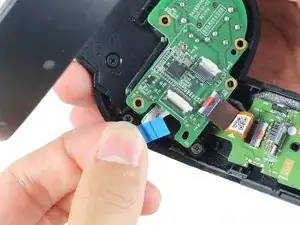

Use the tip of the blue plastic opening tool or your fingernail to gently flip-up the white locking flap.
Make sure to only lift the flap and not the connector socket because the socket easily breaks off.
Grab the blue cable and pull away from the socket.
To reinstall, insert the blue cable into the connector and close the flap on the black line.

Schritt 10

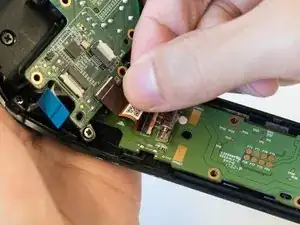

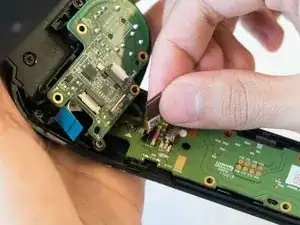

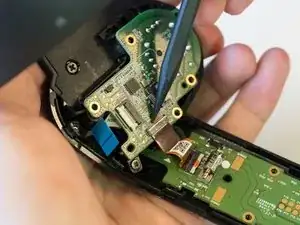

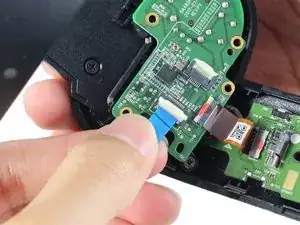

Use the tip of a spudger or your fingernail to gently flip-up the small white flap holding the orange ribbon cable.
Make sure to only lift the flap and not the connector socket because the socket easily breaks off.
Grab the orange cable and pull away from the socket.
To reinstall, insert the orange cable into the connector and close the flap on the white line.
