Dell VRC100-R Touchpad Replacement

Geschrieben von: Steven Pineda
  • Kommentare: 1
Dell VRC100-R Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

30 Minuten

Einleitung

If your Dell VRC100-R controller does not respond to your touchpad movements, you have come to the right place. To follow this guide, you will need a plastic opening tool and a Phillips #0 screwdriver head. You will not need to do any difficult steps, but open the ZIF connector carefully.

  1. JXNSedyjIPOr3VBN
    JXNSedyjIPOr3VBN
    sOB1RwRtgZEA1gOe
    EtehMBqroiSHPtXn

    • Orient your controller so that the black ring is on the bottom and the buttons are facing away from yourself.

    • Place your thumb on the small arrow that is on the controller's battery cover and firmly push upwards.

    • Slide the cover off and separate it from the controller.

  2. xTtmoiu2ORPA6sCp
    xTtmoiu2ORPA6sCp
    V6PZVpdDxZOjiy2G

    • Remove the right battery by pushing the positive end down and pulling the battery out toward yourself.

    • Repeat the procedure for the left battery.

  3. Hv2DpoYV6KwxyKyg
    Hv2DpoYV6KwxyKyg
    TfGJFDqQcKgtnMh3
    DhCnEeWwNahS1Gdi

    • Hold the joystick down with your left thumb to make space for the plastic opening tool.

    • Insert the plastic opening tool into the circle above the joystick and pry upwards to lift the front panel.

    • Slide the plastic opening tool around the perimeter until you can lift the front panel.

    • You may hear a popping noise when you pry off the front panel.

  4. 2LfleGcbYAhrLi4l
    2LfleGcbYAhrLi4l
    HT2BwOueZHEkiuBH

    • Grab the joystick and pull away from the controller to remove it.

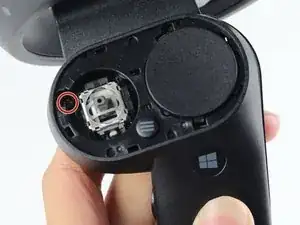

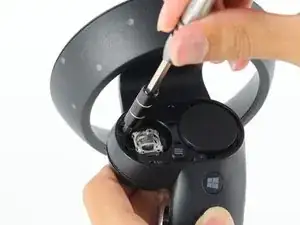

  5. OVrJUcoDWwgwHn1m
    OVrJUcoDWwgwHn1m
    RJUK2Qh2DoovV4W2

    • Remove one 6mm Phillips #0 screw.

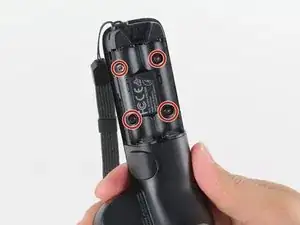

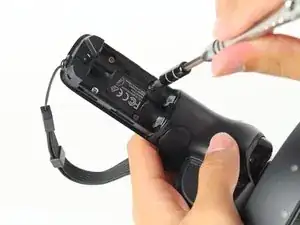

  6. DvIswTHYeUbGVOBR
    DvIswTHYeUbGVOBR
    OqcFGSuUmR1eZNKn

    • Turn your controller over and orient it so that the thin side is on the top.

    • Remove four 4mm Phillips #0 screws.

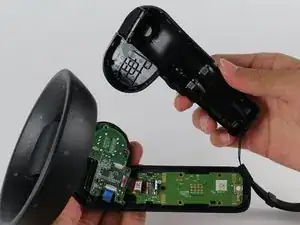

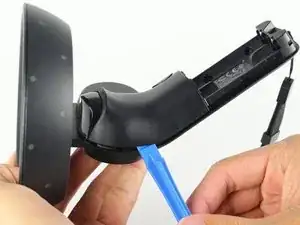

  7. SjYMksApIC1jMLGO
    SjYMksApIC1jMLGO
    6cFDcOXCWiirH6jL

    • Turn your controller 90 degrees clockwise and insert a plastic opening tool into the crease of the back panel.

    • Push down on the end of the plastic opening tool closest to you to lift the panel up.

    • Slide the plastic opening tool around the perimeter of the back panel until you can remove it.

    • You may hear loud popping noises as the back panel separates from the controller.

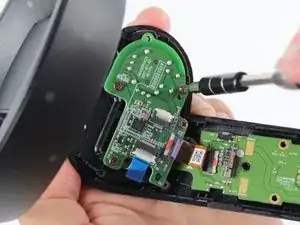

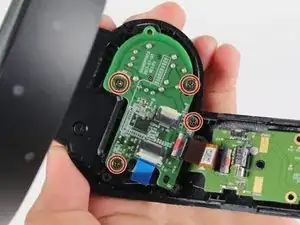

  8. 2WgQwOMDFMYOktPn
    2WgQwOMDFMYOktPn
    Tx1r6Nrg2NgRqmTE

    • Remove four 4mm Phillips #0 screws.

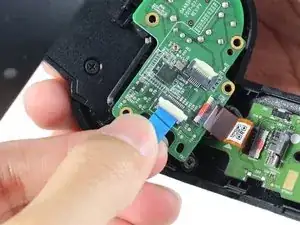

  9. euBQyDwiLcXsmDMG
    euBQyDwiLcXsmDMG
    aJi6tVSsSDRKxEW2
    ZqwuUmrY1XjTHQrn

    • Use the tip of a plastic opening tool or your fingernail to gently flip-up the white locking flap.

    • Make sure to only lift the flap and not the connector socket because the socket easily breaks off.

    • Grab the blue cable and pull away from the socket.

    • To reinstall, insert the blue cable into the connector and close the flap on the black line.

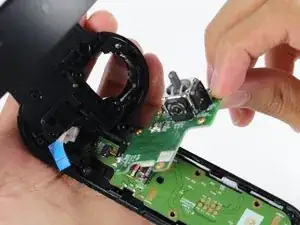

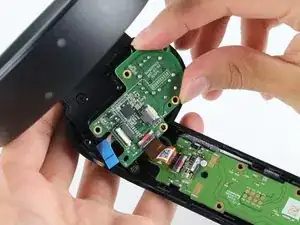

  10. syyxa63hP2CiOIbK
    syyxa63hP2CiOIbK
    C6OCPAIMMILqC4me

    • Place two fingers on the perimeter of the daughterboard and fold it down along the orange cable.

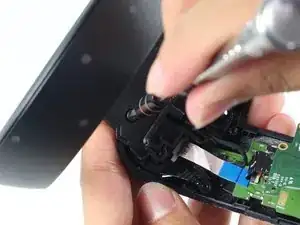

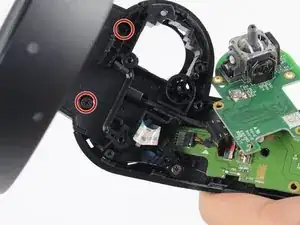

  11. gGVbrwoQcDspJcrG
    gGVbrwoQcDspJcrG
    R6jBYjFLwXnKHZKe

    • Remove two black 6mm Phillips #0 screws.

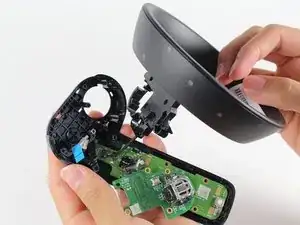

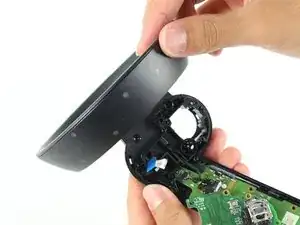

  12. T6pPnaOUgtKXjxWd
    T6pPnaOUgtKXjxWd
    5bqoCXIDaSDNddhD

    • Pinch the black ring on the top of your controller and pull toward yourself to disconnect it.

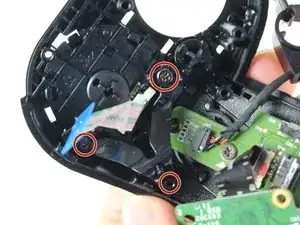

  13. GZODKHmxSUYPDPmJ
    GZODKHmxSUYPDPmJ
    EVpHGMjpCjAcp6ho

    • Remove three 3mm Phillips #0 screws.

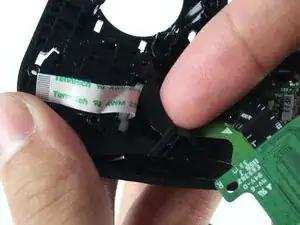

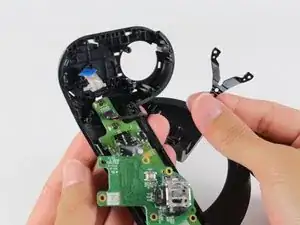

  14. dXetcFte45CHIy4R
    dXetcFte45CHIy4R
    DJFIvwKsuSkuRkvF

    • Insert your finger underneath the black plastic "V" and scoop up to remove it.

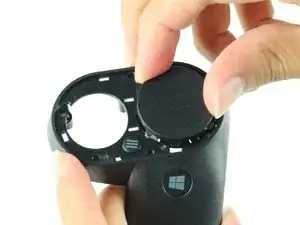

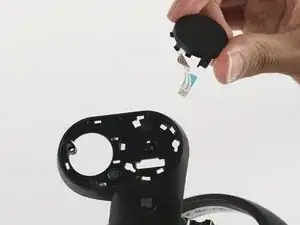

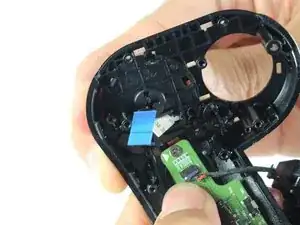

  15. lyvRsR2aCnVIEAeH
    lyvRsR2aCnVIEAeH
    fPmGKn5uohGJBo1q
    JiDPD2ttyjFGkUKI

    • Place your thumb on the outer edge of the touchpad on the other side of the controller.

    • Push toward the center of the circle to get your fingernail underneath the touchpad then scoop away from yourself.

    • You can see the detachable black flaps underneath the touchpad along the perimeter.

    • Turn your controller over and remove the touchpad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
