Dell VRP100 Auxiliary Cord Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

This replacement guide will show you how to replace the auxiliary (aux) cord on your Dell VRP100 headset. Most audio-related issues will stem from the aux cord so it is important to replace it to ensure the highest audio quality.

  1. YNXjLFGrCPbffdOJ
    YNXjLFGrCPbffdOJ
    IeXtAMNY26WttYYN
    hnXawvmUY6vKH2FM

    • Remove the black foam padding by peeling away slowly.

    • Remove the front and back padding from the headset by peeling away slowly.

    Parallel structure

    Andres Ikaika Elzaurdia -

  2. wQGMnqkj1sDDJQM2

    • Remove the six 5.5mm PH000 screws from the cover by rotating counter-clockwise.

    • Cover panel may need to be pushed in before inserting screws.

  3. 6osulcooBfOyRFWr
    6osulcooBfOyRFWr
    ylmgLIvKIw2XYaBD
    T5kdWDWNUXGYnNoU

    • Remove the cover using one of the plastic opening tools, and then carefully pull it from the casing.

    Break one bullet into two

    Andres Ikaika Elzaurdia -

  4. wfd34mshg5DdTjSR
    wfd34mshg5DdTjSR
    Nrm6H1s1iNxPMHTO
    HBPBZOnu4SnRBpQ1

    • Remove the six 5.5mm PH000 screws from the cover by rotating counter-clockwise.

    • Carefully remove the lens and motherboard assembly from the white casing.

    add ‘How’ to second bullet point.

    Andres Ikaika Elzaurdia -

    The “carefully” part should be moved so that the sentence starts with a verb

    Clayton Lipping -

  5. 6ZngvKHiKKm4yi5R
    6ZngvKHiKKm4yi5R
    WJIGSfAGvMnhY5Cv
    FqBj1yBLWFc16joU

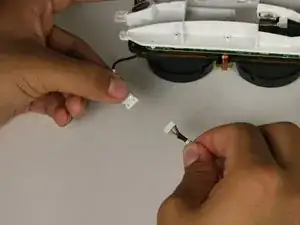

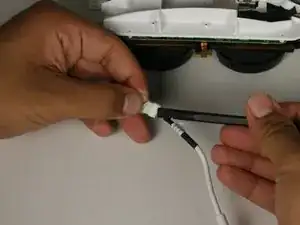

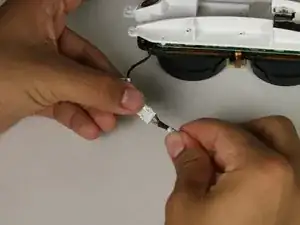

    • Separate the external connector of the auxiliary cord.

    • A spudger may be needed to separate the connector.

  6. og4xT5Ng2wJ2juLw
    og4xT5Ng2wJ2juLw
    eN5OLQQVSAPnydeL

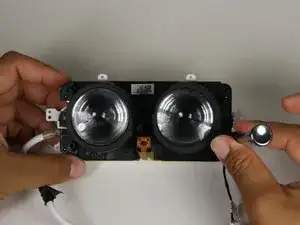

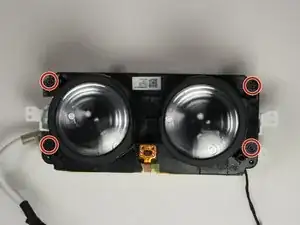

    • Remove the four 2.5mm PH000 screws by rotating counter-clockwise.

    • Separate the lens housing from the motherboard panel.

  7. mHrZADPABQx4Xoga
    mHrZADPABQx4Xoga
    t5TeV2OZXdUlQupb
    1plVh1coVFhmbxkN

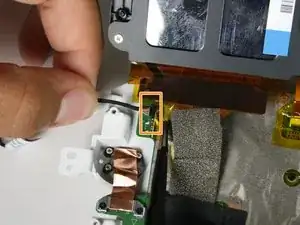

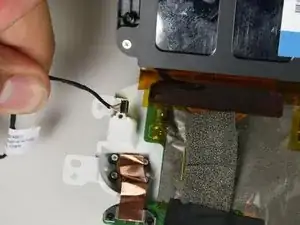

    • In the top right corner of the motherboard panel, peel back the yellow tape covering the bundled auxiliary cable connector using tweezers.

    • Carefully pull out the bundled cable connectors.

Abschluss

To reassemble your device, follow these instructions in reverse order.
