Some reasons you would want to replace the camera in the Dell VRP100 are screen image drifting, image freezing, or tracking/calibration issues. You should be cautious when removing the camera, so the camera lens does not get scratched in the process.
-
-
Remove the black foam padding by peeling away slowly.
-
Remove the front and back padding from the headset by peeling away slowly.
-
-
-
Remove the cover using one of the plastic opening tools, and then carefully pull it from the casing.
-
-
-
Remove the six 5.5mm PH000 screws from the cover by rotating counter-clockwise.
-

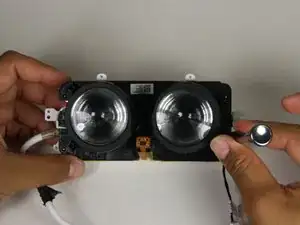

Carefully remove the lens and motherboard assembly from the white casing.
-
-
-

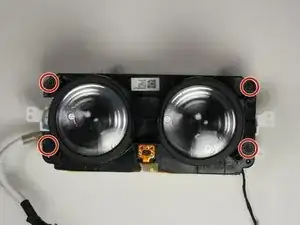

Remove the four 2.5mm PH000 screws by rotating counter-clockwise.
-
Separate the lens housing from the motherboard panel.
-
-
-

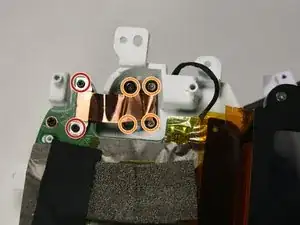

Remove the two 2.5mm PH000 screws from the motherboard by rotating counter-clockwise.
-
Remove the four 3.9mm PH000 screws from the white casing by rotating counter-clockwise.
-
-
-
Remove the flat-topped connector by lifting it straight up from the motherboard.
-

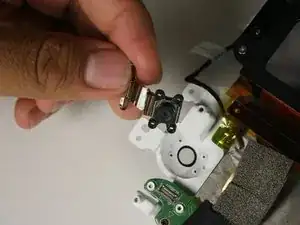

Carefully remove the camera from the casing with the blunt nose tweezers by holding onto the copper tape.
-
To reassemble your device, follow these instructions in reverse order.
