Einleitung
This replacement guide will show you how to replace the HDMI/USB cable on your Dell VRP100 headset. With the right tools, this will be a quick and easy replacement.
-
-

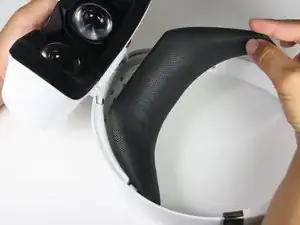

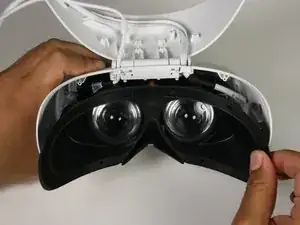

Remove the black foam padding by peeling away slowly.
-

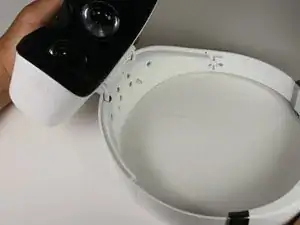

Remove the front and back padding from the headset by peeling away slowly.
-
-
-

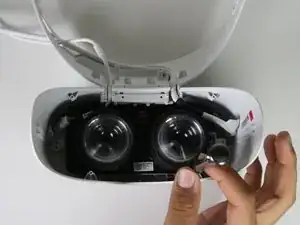

Remove the cover using one of the plastic opening tools, and then carefully pull it from the casing.
-
-
-

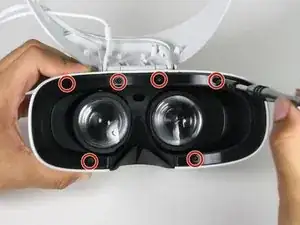

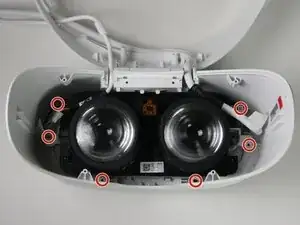

Remove the six 5.5mm PH000 screws from the cover by rotating counter-clockwise.
-

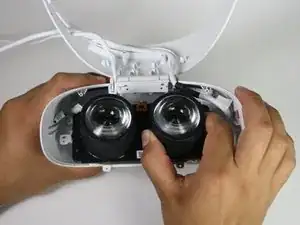

Carefully remove the lens and motherboard assembly from the white casing.
-
-
-

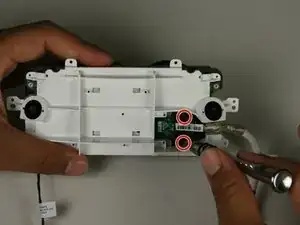

Remove the two 3.4mm PH000 screws from the cover by rotating counter-clockwise.
-

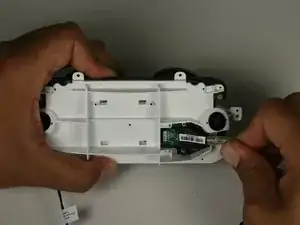

Peel off the tape using your hands or the blunt nose tweezers.
-
-
-

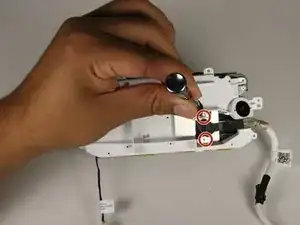

Remove the two 5.5mm PH000 screws from the cover by rotating counter-clockwise.
-
Hold the HDMI/USB cable and remove from the connection.
-
To reassemble your device, follow these instructions in reverse order.
