Dell VRP100 Lens Replacement

Geschrieben von: Chris Grabow
  • Kommentare: 4
Dell VRP100 Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

25 Minuten

Einleitung

If your Dell VRP100 headset has a cracked, scratched or broken lens you are definitely going to want to replace it. This guide has all the steps for you need replace those beat up lenses with new ones. You will need a metal spudger for parts of this guide.

  1. YNXjLFGrCPbffdOJ
    YNXjLFGrCPbffdOJ
    IeXtAMNY26WttYYN
    hnXawvmUY6vKH2FM

    • Remove the black foam padding by peeling away slowly.

    • Remove the front and back padding from the headset by peeling away slowly.

    Parallel structure

    Andres Ikaika Elzaurdia -

  2. wQGMnqkj1sDDJQM2

    • Remove the six 5.5mm PH000 screws from the cover by rotating counter-clockwise.

    • Cover panel may need to be pushed in before inserting screws.

  3. 6osulcooBfOyRFWr
    6osulcooBfOyRFWr
    ylmgLIvKIw2XYaBD
    T5kdWDWNUXGYnNoU

    • Remove the cover using one of the plastic opening tools, and then carefully pull it from the casing.

    Break one bullet into two

    Andres Ikaika Elzaurdia -

  4. wfd34mshg5DdTjSR
    wfd34mshg5DdTjSR
    Nrm6H1s1iNxPMHTO
    HBPBZOnu4SnRBpQ1

    • Remove the six 5.5mm PH000 screws from the cover by rotating counter-clockwise.

    • Carefully remove the lens and motherboard assembly from the white casing.

    add ‘How’ to second bullet point.

    Andres Ikaika Elzaurdia -

    The “carefully” part should be moved so that the sentence starts with a verb

    Clayton Lipping -

  5. IuoKP6FEBaeyh5CP
    IuoKP6FEBaeyh5CP
    43bURQ3Xq6Mpe2ON

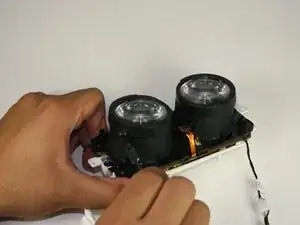

    • Deattach the black cover from the lens with a metal spudger.

    • This will “click” back into place during replacement.

  6. cTJjUmXMgJsU4S4V
    cTJjUmXMgJsU4S4V
    XI4ZGg424CVc1AGY
    b1dt5gTEGRl3xsMo

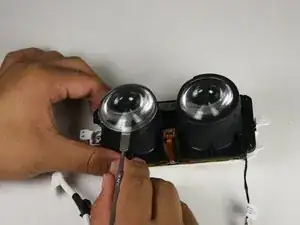

    • Gently insert the metal spudger between the lens and the lens casing.

    • Rotate the spudger around the exterior of the lens and lens housing, separating them.

    • The lens is held in place with an adhesive that will have to be applied during reassembly.

  7. ugP1UBSmCNRsRgJN

    • Holding the lens around the outside, gently lift it out of its housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
