Dell Venue 7 Speaker Replacement

Geschrieben von: Stephen Rousseau
  • Kommentare: 1
Dell Venue 7 Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

If you want to replace the speaker you must first get a new one. Once you do, then you are ready to follow these easy steps.

Werkzeuge

  1. yg1BLImKehXkWI3I
    yg1BLImKehXkWI3I
    XPuFMxkPeGItN6ZR

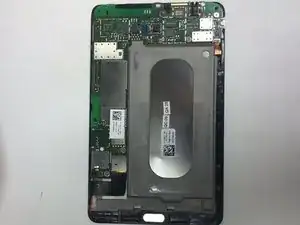

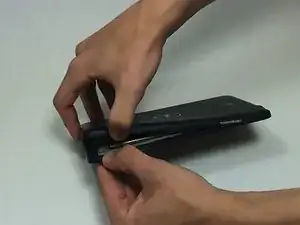

    • Use a spudger or your fingers to pry off the back case.

    • If your case is badly damaged, use caution because the fragments may be sharp.

  2. mdrpESZvYIpVRoTF

    • Gently disconnect the battery from the motherboard using your fingers or a pair of tweezers.

  3. uoIE55x1aXfoOu6F

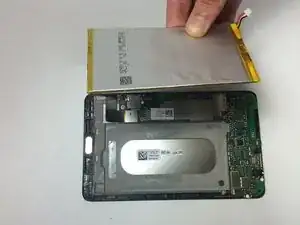

    • Remove the battery by pulling it from the edges and carefully peeling it off of the base.

    • There is adhesive keeping the battery in place, so don't be afraid to use a little extra force.

    • Do not bend or warp the battery in any way as it can be a fire hazard.

  4. YVhcgf4VCybHA3vc
    YVhcgf4VCybHA3vc
    ReL23BWdkb4oHjxl

    • Use a spudger to remove the ribbon cable that is around the speaker wire.

  5. HPGJdsmDEy6kFRuF
    HPGJdsmDEy6kFRuF
    vW1uXvF6JYn2IdAW

    • Disconnect the speaker wire from the motherboard by prying the connector upwards with the spudger.

  6. jnUWvJlO4JoR6TtJ

    • Remove the plastic covering on the speaker.

  7. 6B1XWlLOtS1mYlup
    6B1XWlLOtS1mYlup
    2h5RctdWZHmAP5Re

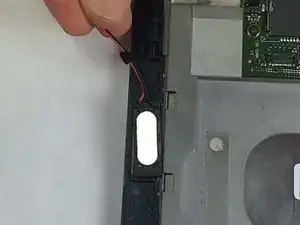

    • Gently pull on the wire and remove the speaker.

    When I was pulling the speaker out the wire had broken where can I get the speaker?

    ginovirgiltthiruchudar -

Abschluss

To reassemble your device, follow these instructions in reverse order.
