Dell Venue 8 7840 Power and Volume Button Replacement

Geschrieben von: Donnelle January
  • Kommentare: 0
Dell Venue 8 7840 Power and Volume Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

10 Minuten

Einleitung

Use this guide if the power and volume buttons on your Dell Venue 8 7840 aren't working.

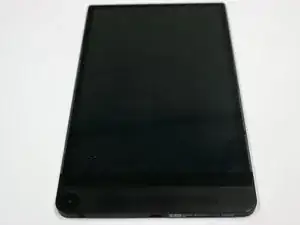

  1. SVhHTQwTVUPlGW6Z

    • Make sure your device is turned off. Leaving it turned on may cause an electric shock.

    • Face the device with the screen towards you.

  2. Xf5sO5wfE62LLlNL

    • With a plastic opening tool, pry open the bottom left corner of the screen.

    • The screen is tightly attached to the tablet, so you may have to use a metal spudger to pry it open if the plastic spudger does not do the task.

  3. 2d3UTNGMV5W6uB2H

    • Next, pry open the top left corner of the screen.

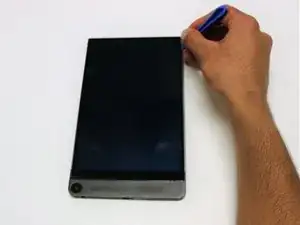

  4. 1VQL2GQeufOOAqLX

    • Then, pry open the top right corner of the screen.

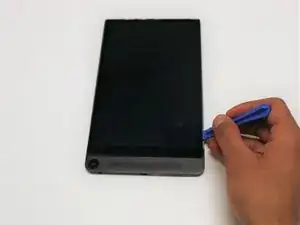

  5. 31uJXJcsP5WSK4s6

    • Lastly, pry open the bottom right corner of the screen.

  6. YxhUBAWZIeOHpAMN

    • Once you have pried open all the corners of the tablet, carefully open the screen from the right side of the tablet.

    • Do not try and open the screen from the left side of the tablet, because the screen is attached on the left side of the tablet; doing this can damage the tablet.

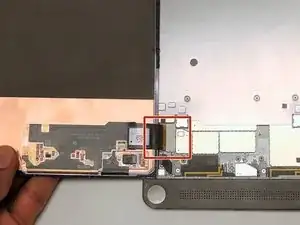

  7. WXFPwZaUcja4ZyAR

    • Once the tablet is opened, locate the connector.

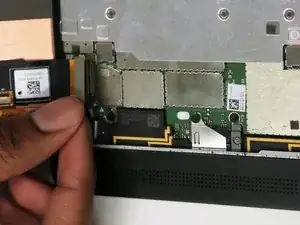

  8. ZLjKHogbZZnF6tQQ

    • Disconnect the connector from the tablet.

  9. SWLq2fnJFPpcWVjK

    • Unscrew the eight 7 mm Philips #1 screws.

    • After the screws are unscrewed, you can take off the silver cover.

  10. RhjxfkWLaPaQgfXd

    • Using tweezers, disconnect the battery from the tablet.

    • After disconnecting the battery, you can remove the battery from the tablet.

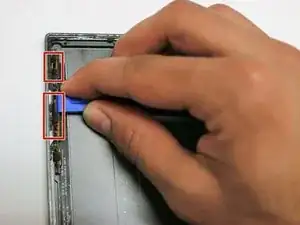

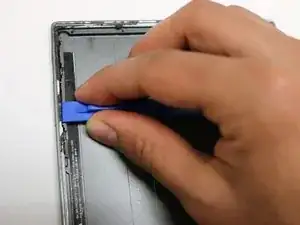

  11. ZZe2YfZKAyYCEk3R
    ZZe2YfZKAyYCEk3R
    ABKoP2GhQfBVFLtj

    • Using a plastic opening tool, pry open the left side of the tablet.

    • Locate the power and volume buttons.

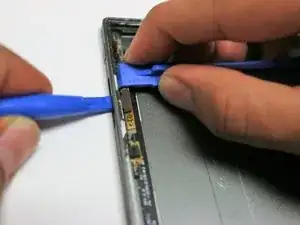

  12. 22SDgoOdPvdWfeoP

    • Using a plastic opening tool, push out the volume button from the left side of the tablet.

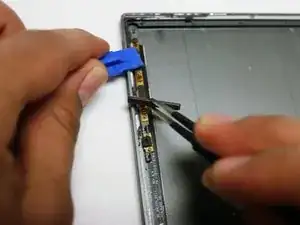

  13. lH1OLkxMRV5RhVKk

    • Make sure that you hold the left side of the tablet open with a plastic opening tool so that you will be able to take out the volume button.

    • With tweezers, pull out the volume button.

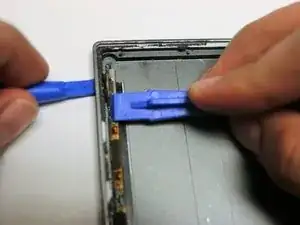

  14. RXBIqKH2NrYMQAqt

    • With a plastic opening tool, push out the power button from the left side of the tablet.

  15. mGVK46agKKVPDhpH

    • Just like the volume button, you want to make sure that you hold the left side of the tablet open with a plastic opening tool so that you will be able to take out the power button.

    • With tweezers, pull out the power button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
