Dell Venue 8 Battery Replacement

Geschrieben von: Andrea
  • Kommentare: 1
Dell Venue 8 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

Your battery in your tablet may not be working. We will be replacing the battery of the Dell Venue 8.

  1. gQRlDG3oZ31HElRP

    • Hold the device with the screen facing up. Gently wedge your plastic opening tool into the crease, and run it along the perimeter of the case

    • You will hear click sounds as the clips unhinge

    • Remove the back panel of the device.

  2. mVPryVtdGnNcfd6c
    mVPryVtdGnNcfd6c
    gY1rFVqQlVIZVWee
    MdRISNcQK6BKpmvG

    • Remove the 14 screws with the T-5 Torx screwdriver. (11 black 3.6mm screws, and three 4.45mm screws)

    • The silver screws are marked with an "S" or a sticker [S1.6(Silver)] See the corrected image

    • 4.45mm Silver screws

    • 3.6mm Black screws

    • Gently snap the perimeter clips open, and remove the internal plastic case.

    ط

    طمككط

    Aziza -

  3. 2PrdbX1EHVrIqgjs

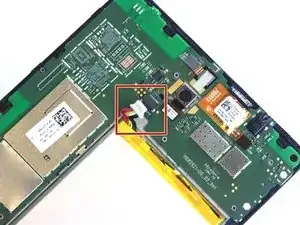

    • Unclip the power clip from the motherboard by pulling down gently towards the bottom of the tablet.

  4. seX4JGkdixwsEBed

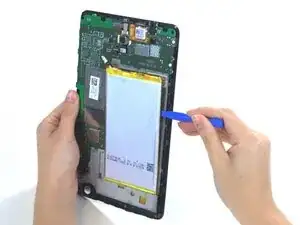

    • Gently pry the battery away from the device with the plastic opening tool to remove it.

    • The battery is held on to the tablet by a light adhesive

Abschluss

To reassemble your device, follow these instructions in reverse order.
