Dell Venue 8 Speaker Replacement

Geschrieben von: Andrea
  • Kommentare: 2
Dell Venue 8 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

If your audio sounds muffled or distorted, it may be time to fix the speaker. Look at this guide to learn how to replace the Dell Venue 8 speaker.

  1. gQRlDG3oZ31HElRP

    • Hold the device with the screen facing up. Gently wedge your plastic opening tool into the crease, and run it along the perimeter of the case

    • You will hear click sounds as the clips unhinge

    • Remove the back panel of the device.

  2. mVPryVtdGnNcfd6c
    mVPryVtdGnNcfd6c
    gY1rFVqQlVIZVWee
    MdRISNcQK6BKpmvG

    • Remove the 14 screws with the T-5 Torx screwdriver. (11 black 3.6mm screws, and three 4.45mm screws)

    • The silver screws are marked with an "S" or a sticker [S1.6(Silver)] See the corrected image

    • 4.45mm Silver screws

    • 3.6mm Black screws

    • Gently snap the perimeter clips open, and remove the internal plastic case.

    ط

    طمككط

    Aziza -

  3. da4XdnZQYpHQ1AiU

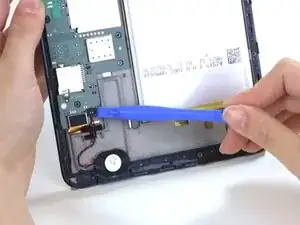

    • Using your plastic opening tool, unclip the speaker connection from the logic board.

    • Caution: Pull directly up, not out, on the connection

    Be extra careful when prying this connection! The safer route would actually be to skip this step and proceed with the rest of the instructions. After removing the speaker use a piece of regular tape to attach it to the logic board to keep both parts together.

    Franklin Ramos -

  4. Av5dLPLYbIRZEJCo

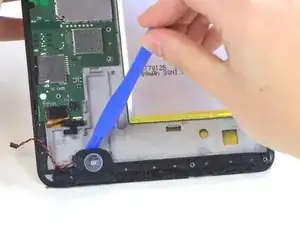

    • Remove the speaker by placing using your plastic opening tool in the gap on the top of the speaker and prying it up.

    • The speaker is held on by light adhesive

Abschluss

To reassemble your device, follow these instructions in reverse order.
