Dell Vostro 1000 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 1000 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

4 - 8 Minuten

Einleitung

  1. NJUwcElIXxnO3BaZ

    • Slide and hold the battery-bay latch release on the bottom of the computer, and then lift the battery from the bay.

  2. XgweRxV5A1k2eyYr

    • loosen the captive screws on the memory module cover, and then remove the memory module cover.

  3. FbcWKDECPR2DpaOO

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory-module securing clips.

    • NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

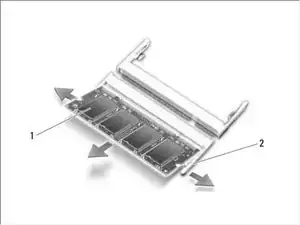

    • Use your fingertips to carefully spread apart the memory-module securing clips on each end of the memory module connector until the module pops up.

    • Remove the module from the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
