Einleitung

  1. 55edmkFPmQmhsyUQ
    • Slide the battery lock to the open position. {2}

    • Slide the battery latch release to the open position. (You may need to hold the latch release in the open position while removing the battery.){3}

    • Slide the battery out of the battery bay. {1}

  2. TJCVXBFHAQl2msbQ
    • Remove the M2.5 x 5-mm screw that secures the hard-drive compartment cover. {2}

    • Remove the cover and set it aside.{1}

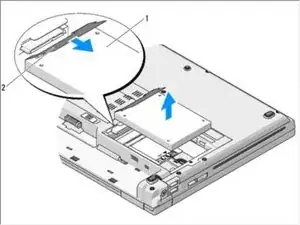

  3. Jgom2qAJ4orHS5nH
    • NOTICE: When the hard drive is not in the computer, store the drive in protective antistatic packaging.

    • Remove the two screws securing the hard drive to the hard-drive bracket.

    • Slide the hard drive out of the hard-drive bracket.

    • Pull the mylar tab to release the hard drive.

    • Lift the hard drive out of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
