Einleitung

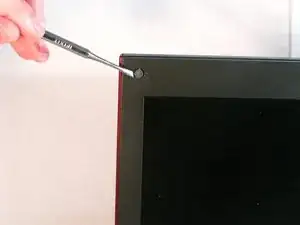

  1. aA3QwDbpFeGbvDoK
    • Take screw covers off with a metal spudger

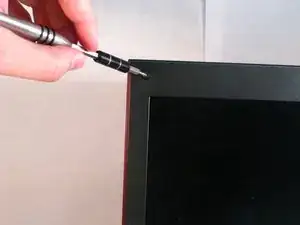

  2. xeWobUPIYamZwgoB
    • Take the six screws out with the bit driver.

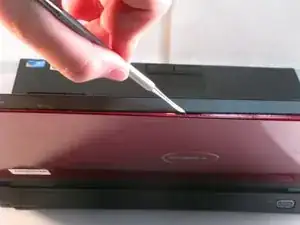

  3. R4AG1LMJSqsykKrq
    R4AG1LMJSqsykKrq

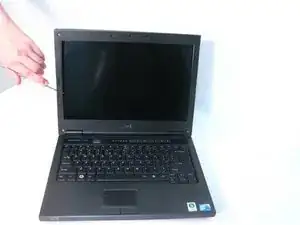

    qWWdhJ6wYOyA5FYM
    • Pop the black plastic panel off with the metal spudger. There are three spots where you should leverage it so that the panel does not break.

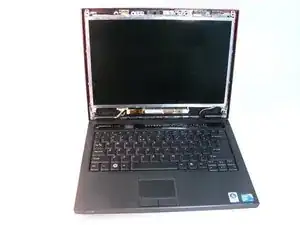

  4. ir33dcIkoccv6Gfp
    • Remove the plug on the bottom of the screen.

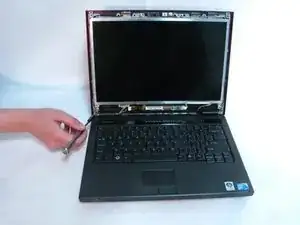

  5. Nx153TEHdAxy3YYW
    • Remove the two screws on the bottom of the computer screen.

  6. VhsCMP3kNKfDBvDy
    • Remove the tape and the LCD plug/connector from the back of the screen.

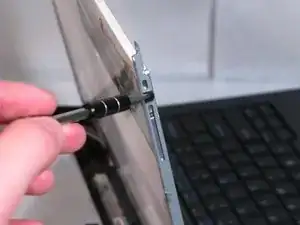

  7. ig6vZPiNmu1CnqHb
    ig6vZPiNmu1CnqHb

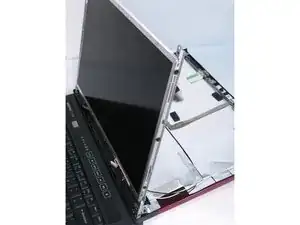

    jqljdNmMgFPdTPxB
    • Remove the three screws on the left and right of the screen.

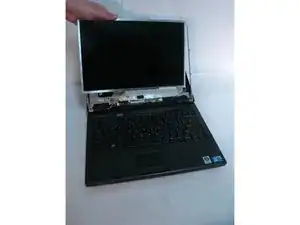

  8. Smv3ZxL3TKQomOnI
    • Remove the screen from the metal side frames.

Abschluss

To reassemble your device, follow these instructions in reverse order.
