Einleitung

  1. sW33HrSalVYlr6P3
    • Remove the screws that secure the back cover to the computer

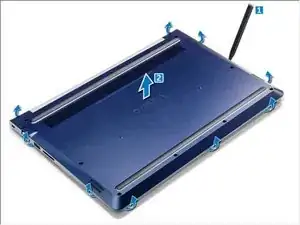

  2. f6theGep3wWCPJMT
    • Using a scribe, pry the edges of the back cover from all sides [1].

    • Lift the back cover from the computer [2].

  3. yZZhFWjowGrTKhco
    • Disconnect the battery cable from the connector on the system board [1].

    • Remove the screws that secure the battery to the computer [2].

    • Lift and remove the battery from the computer [3].

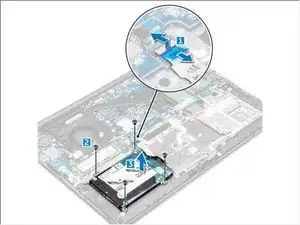

  4. uGO4211wcOplKDmR
    • Lift the tab to disconnect the hard drive cable from the connector on the system board [1] .

    • Remove the screws that secure the hard drive to the computer [2].

    • Lift the hard drive from the computer [3].

Abschluss

To reassemble your device, follow these instructions in reverse order.
