Dell Vostro 1450 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 1450 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

Werkzeuge

  1. Ii2R2kS4KSWTpbUI

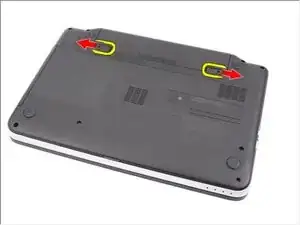

    • Slide the release latches to unlock the battery.

  2. Q24okGZ2TDYYSdFD

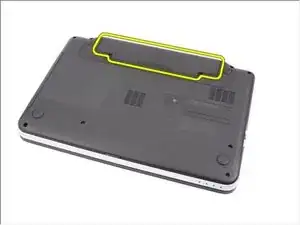

    • Slide the battery and remove it from the computer.

  3. TDnjjH553BVvYYVc

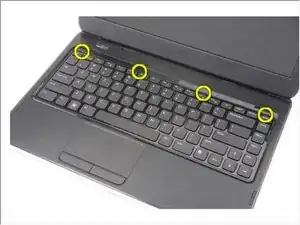

    • Pry up to release the top four snaps securing the keyboard to the computer.

  4. cbgpvWWH2JqlG54K

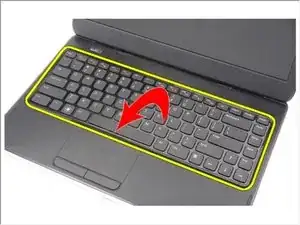

    • Flip the keyboard over and lay it on the palm rest.

  5. erlrAeH3hnfidu5T

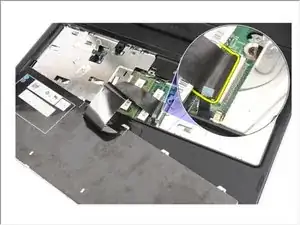

    • Disconnect the keyboard cable from the system board.

  6. pVrR2p1MRvvpA2lC

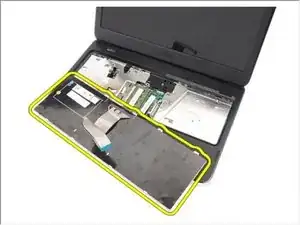

    • Remove the keyboard from the computer.

  7. oqLCSQSpRSNuIvAW
    oqLCSQSpRSNuIvAW
    na5seR2GJJiAAIPg

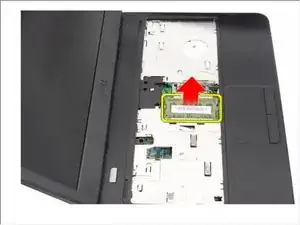

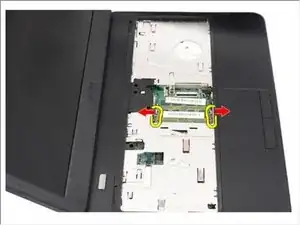

    • Pry the retention clips away from the memory module until it pops up.

    • Remove the memory module from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
