Einleitung
Werkzeuge
-
-
Slide the release latch to release the battery [1].
-
Remove the battery from the computer [2].
-
-
-
Remove the M2L3 screw that secures the optical drive to the computer [1].
-
Using a plastic scribe, push the tab in the direction of the arrow indicated on the chassis. [2].
-
Slide the optical drive out of the computer [3].
-
-
-
Using a plastic scribe, release the five tabs from the slots located above the keyboard [1].
-

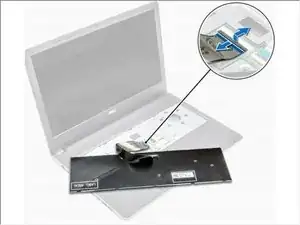

Flip the keyboard on the palm rest to access the keyboard connector cable under the keyboard [2].
-
-
-
Disconnect the keyboard cable from the system board.
-
Remove the keyboard from the computer.
-
-
-
Disconnect the optical drive connector and lift it to remove it from the system board [1].
-
Remove the M2L5 screws that secure the base cover [2].
-
-
-

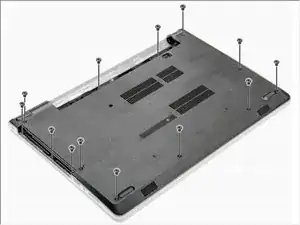

Flip the computer and remove the screws (8 screws - M2.5L8; 3 screws - M2L2; 2 screws- M2L2) that secure the base cover to the computer.
-
-
-

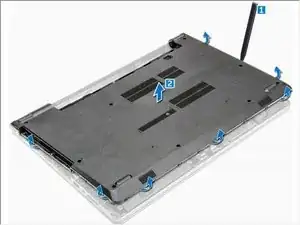

Use a scribe to pry the edges of the base cover [1].
-
Lift the base cover and remove it from the computer [2].
-
-
-
Pull the clips securing the memory module until the memory module pops up [1].
-
Remove the memory module from the system board [2].
-
To reassemble your device, follow these instructions in reverse order.
