Dell Vostro 15 5568 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 1
Dell Vostro 15 5568 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

8 - 15 Minuten

Einleitung

  1. MLHABsnoWrK2PVVL

    • Remove the screws that secure the back cover to the computer.

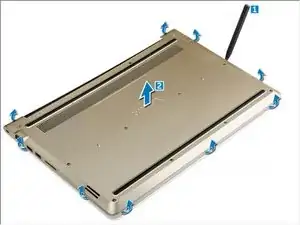

  2. AV1msJDANZGAeXhr

    • Using a scribe, pry the edges of the back cover from all sides [1].

    • Lift the back cover from the computer [2].

    Orientation: the bottom of the laptop facing up, hinge on the opposite side from you.

    Be careful if you want to open up the screen after undoing the top left corner screw. This is the only screw on this side attaching the hinge to the baseplate, so if it's removed, the hinge might pry up the corner (upon opening the laptop).

    This can also aid in creating the first gap where you can insert a prytool.

    kepeter97 -

  3. KRCJFWkEINHiGnap

    • Disconnect the battery cable from the connector on the system board [1].

    • Remove the screws that secure the battery to the computer [2].

    • Lift and remove the battery from the computer [3].

  4. C5VNloSTDlMf4W4N

    • Pull the retention clips from the memory module until it pops up. [1]

    • Remove the memory module from the connector on the system board. [2]

Abschluss

To reassemble your device, follow these instructions in reverse order.
