Dell Vostro 15 7570 Hard Drive Replacement

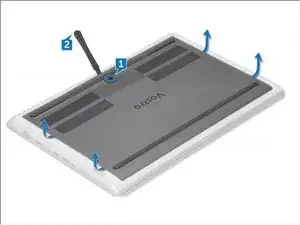

Loosen the M2.5x2+3.5 captive screws that secure the base cover to the computer [1].

Pry the base cover from the edge [2].

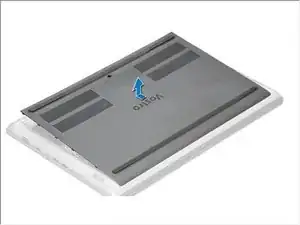

Lift the base cover away from the computer

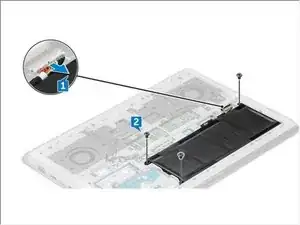

Disconnect the battery cable from the connector on the system board [1].

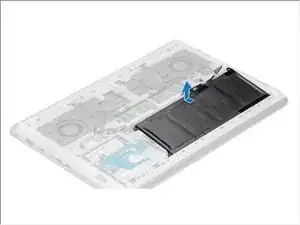

Remove the M2x3L screws that secure the battery to the computer [2].

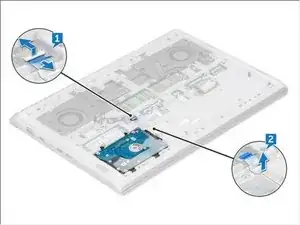

Lift the latch and disconnect the hard drive cable from the computer [1].

Pry the hard drive cable to release from the adhesive [2].

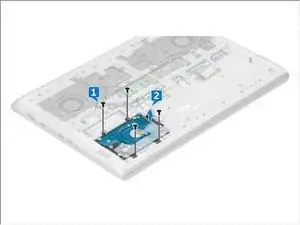

Remove the M2.5x5L screws that secure the hard drive to the computer [1].

Lift the hard drive away from the computer [2].
