Dell Vostro 1520 Hard Drive Replacement

Slide the battery lock latch on the left away from the battery.

Slide the battery latch at the center toward the right..

Slide the battery itself toward the back of the computer and remove

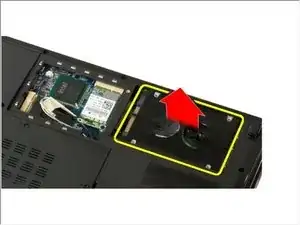

Remove the two screws that secure the hard drive and mini-card access panel to the computer.

Slide the panel toward the rear of the computer.

Remove the hard drive and mini-card access panel.

Slide the hard drive toward the side of the computer.

Lift and remove the hard drive from the computer.
