Dell Vostro 1520 Hard Drive and Mini-Card Access Panel Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 1520 Hard Drive and Mini-Card Access Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

6 - 10 Minuten

Einleitung

  1. IogyAScbwXYIPQcN

    • Slide the battery lock latch on the left away from the battery.

  2. yc2D6XxxVAPHjr4X

    • Slide the battery latch at the center toward the right..

  3. 5XKis4RvqsZAtxdG

    • Slide the battery itself toward the back of the computer and remove

  4. BxvLemVyrStodO52

    • Remove the two screws that secure the hard drive and mini-card access panel to the computer.

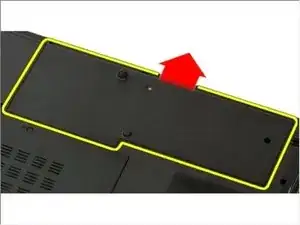

  5. 5jiOxqtrLAlPUAKh

    • Slide the panel toward the rear of the computer.

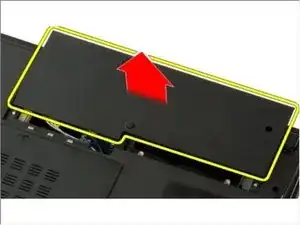

  6. TYjBftMmxQEqrcMv

    • Remove the hard drive and mini-card access panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
