Dell Vostro 1520 Memory Module Replacement

Slide the battery lock latch on the left away from the battery.

Slide the battery latch at the center toward the right..

Slide the battery itself toward the back of the computer and remove

Loosen the two captive screws on the access panel.

Lift the right side of the access panel.

Remove the access panel.

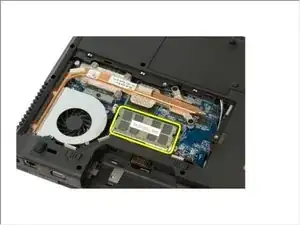

Using your fingertips, carefully spread apart the securing clips on each end of the memory module connector until the memory module pops up.

Remove the memory module from the socket
