Dell Vostro 1520 Processor and Memory Access Panel Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 1520 Processor and Memory Access Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

4 - 8 Minuten

Einleitung

  1. IogyAScbwXYIPQcN

    • Slide the battery lock latch on the left away from the battery.

  2. yc2D6XxxVAPHjr4X

    • Slide the battery latch at the center toward the right..

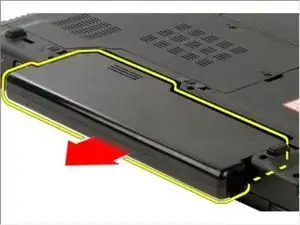

  3. 5XKis4RvqsZAtxdG

    • Slide the battery itself toward the back of the computer and remove

  4. 2bStHfa3GcJNAlqj

    • Loosen the two captive screws on the access panel.

  5. oK62QXLbcupM5XiM

    • Lift the right side of the access panel.

    • Remove the access panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
