Dell Vostro 1710 Back Panel Replacement

Geschrieben von: Jeremy Campeau
  • Kommentare: 0
Dell Vostro 1710 Back Panel Replacement

Schwierigkeitsgrad

Very easy

Schritte

2

Zeitaufwand

4 - 8 Minuten

Einleitung

The back panel has to be removed in order to be able to replace components like the RAM, fan, and heat sink.

  1. CqvHqnU3x5UVUftc
    CqvHqnU3x5UVUftc
    V3OINWWcLGByNkND

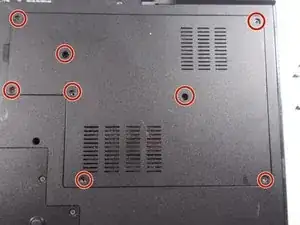

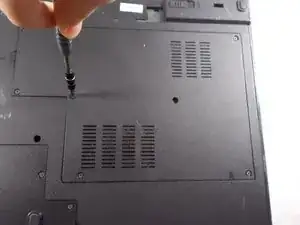

    • Unscrew the eight 6mm screws with a Philips #1 screw driver.

  2. qNjJvmgdBWmmTuhk

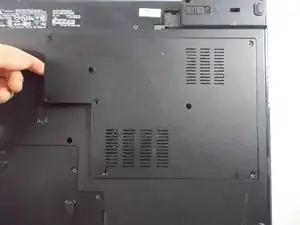

    • Lift back cover from the groove on the left side of the cover next to the symbol.

Abschluss

To reassemble your device, follow these instructions in reverse order.
