Dell Vostro 1710 Hard Drive Replacement

Geschrieben von: Jeremy Campeau
  • Kommentare: 0
Dell Vostro 1710 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

7 - 10 Minuten

Einleitung

The hard drive is the part of the computer that stores all your data including programs, documents, etc. If your laptop is not saving anything you will need to replace your hard drive. This guide can help you remove an old hard drive from the Dell Vostro 1710.

  1. HJSe4nLCeEcGuOmP
    HJSe4nLCeEcGuOmP
    BYIepnxTBWdpYgL6

    • Make certain that the power to your laptop is off.

    • Press and slide the two buttons outwards and away from the battery.

  2. tcKlJi3AtuyJOwOA

    • Slide the battery away and parallel from the laptop.

  3. jZs1qKsbE6ooIVHT

    • Remove the battery from the slot.

  4. kD2vYjTRLa5nXIC4
    kD2vYjTRLa5nXIC4
    wTNCS1HFVFfLwVVK

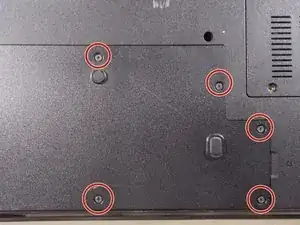

    • Remove the following five Phillips #1 6mm screws.

  5. CxJ1shdgZ5dNiMrn

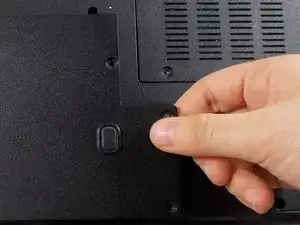

    • Lift back cover from the groove on the right side of the cover next to the symbol.

  6. au3uKFRCHvWoyNLX
    au3uKFRCHvWoyNLX
    GjarLfRw6crTYtqN

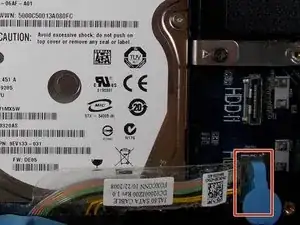

    • Pull up on the blue tab that is attached to the ribbon cable to unplug it.

  7. xdOlMJPFpSxcDsu5
    xdOlMJPFpSxcDsu5
    hI4RBolvCMMoH63f

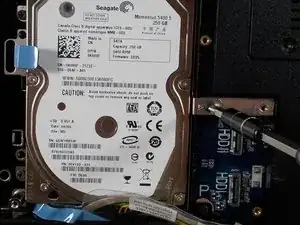

    • Remove the three Philips #1 3mm screws.

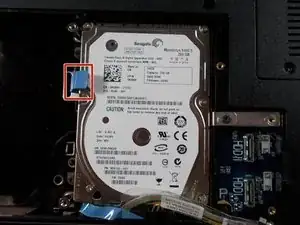

  8. GbPeUEmYQuygEKmL
    GbPeUEmYQuygEKmL
    Umw3gplHtuqobEuU

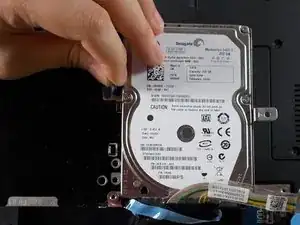

    • Lift and remove the Hard Drive frame by pulling up on the blue tab.

  9. c2cp13GXCbCqa4nn
    c2cp13GXCbCqa4nn
    ZiZYFST6bhBheyU3

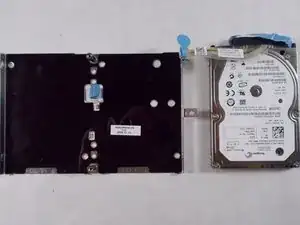

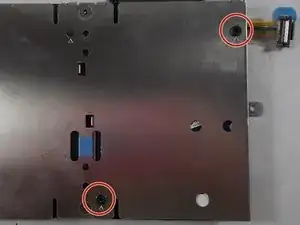

    • Remove the two 3mm screws with a Philips #1 screwdriver from the back side of the frame to remove the Hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
