Dell Vostro 1710 Heatsink Replacement

Geschrieben von: Tangxiao Sun
  • Kommentare: 0
Dell Vostro 1710 Heatsink Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

7 - 10 Minuten

Einleitung

The heat sink helps disperse the heat from the laptop, it usually used in conjunction with the fan. If your laptop is overheating, you might need to replace the heatsink. The guide will demonstrate how to replace the heatsink step by step.

  1. HJSe4nLCeEcGuOmP
    HJSe4nLCeEcGuOmP
    BYIepnxTBWdpYgL6

    • Make certain that the power to your laptop is off.

    • Press and slide the two buttons outwards and away from the battery.

  2. tcKlJi3AtuyJOwOA

    • Slide the battery away and parallel from the laptop.

  3. jZs1qKsbE6ooIVHT

    • Remove the battery from the slot.

  4. CqvHqnU3x5UVUftc
    CqvHqnU3x5UVUftc
    V3OINWWcLGByNkND

    • Unscrew the eight 6mm screws with a Philips #1 screw driver.

  5. qNjJvmgdBWmmTuhk

    • Lift back cover from the groove on the left side of the cover next to the symbol.

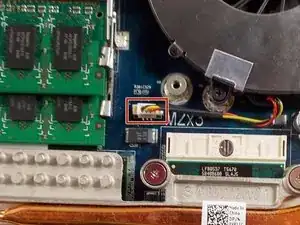

  6. wD2sVebXTFltvOAw
    wD2sVebXTFltvOAw
    bxOsrvNiUP4Dlwta

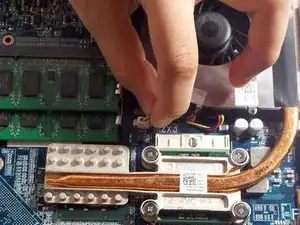

    • Unclip the power supply by pulling the cable directly up and out of the socket.

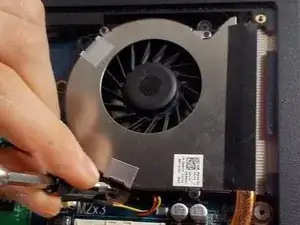

  7. TYwsAD4EuqOmCCuV
    TYwsAD4EuqOmCCuV
    DrXXRNiCfVjueDyV

    • Remove the two 3mm screws located around the edge of the fan with a Philips #1 screw driver.

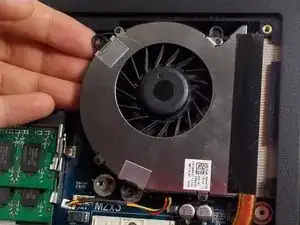

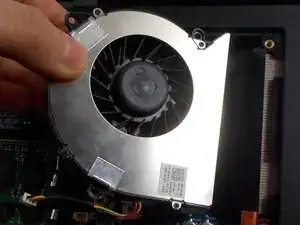

  8. 1adShOFV1SixCjnt
    1adShOFV1SixCjnt
    roOtZG6hAFau41VW

    • Gently lift and pull to the left until the fan is free from the heatsink.

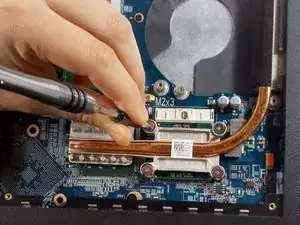

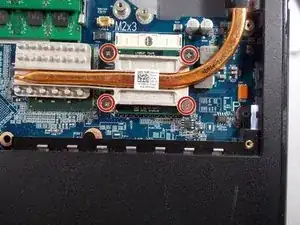

  9. haEv5MhCHJxfTbtX
    haEv5MhCHJxfTbtX
    ZTxnYmZ41tVHJQXU

    • Unscrew the four 8mm screws using a Phillips #1 screwdriver until the heatsink is free.

    • The screws do not come out, only loosen.

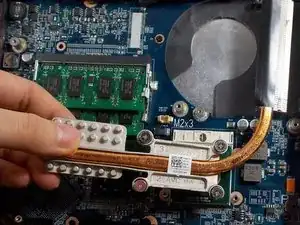

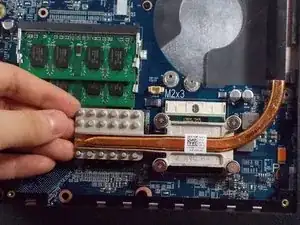

  10. fkI5DqTgkXBEx2DZ
    fkI5DqTgkXBEx2DZ
    vg1myMqjUNPNwIiW

    • Lift up on the heatsink to remove it from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
