Dell Vostro 1710 Keyboard Replacement

Geschrieben von: Tangxiao Sun
  • Kommentare: 0
Dell Vostro 1710 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

7 - 10 Minuten

Einleitung

The keyboard helps user input characters and functions when using the laptop. If your key does not function well, you might need to replace the keyboard. This guide will walk you through on how to replace the keyboard.

  1. HJSe4nLCeEcGuOmP
    HJSe4nLCeEcGuOmP
    BYIepnxTBWdpYgL6

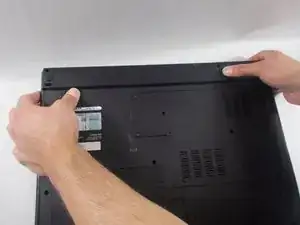

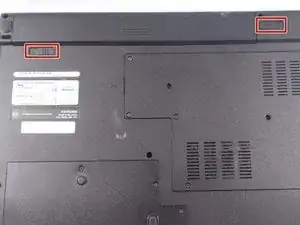

    • Make certain that the power to your laptop is off.

    • Press and slide the two buttons outwards and away from the battery.

  2. tcKlJi3AtuyJOwOA

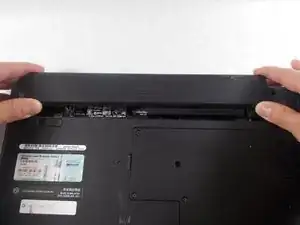

    • Slide the battery away and parallel from the laptop.

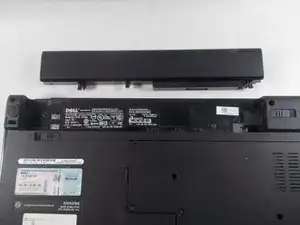

  3. jZs1qKsbE6ooIVHT

    • Remove the battery from the slot.

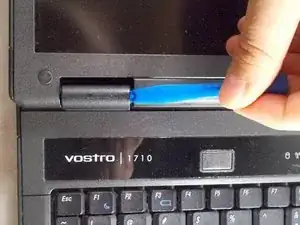

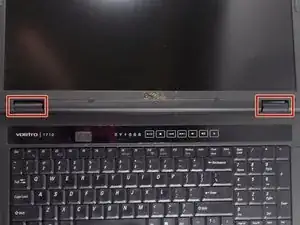

  4. aSZKirKOSmUoVCsy
    aSZKirKOSmUoVCsy
    fVGhEpr4GbdOQJga
    Eqv4OxGDIoUV5itP

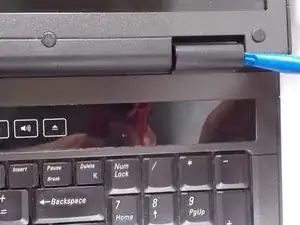

    • Use the plastic opening tool to loosen the plastic hinge cover that is located above the keyboard.

  5. QUwmlW4AJhpQrGRX
    QUwmlW4AJhpQrGRX
    3SRBWKCIcCFkFdva

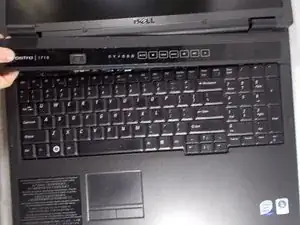

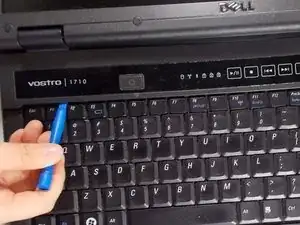

    • Remove plastic hinge cover by gently lifting up the cover with a plastic opening tool from one side to the other.

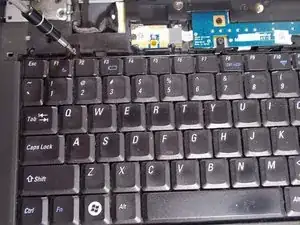

  6. hmiBuZcxVXAlmQkW
    hmiBuZcxVXAlmQkW
    mv2phDPULWOvLMyc

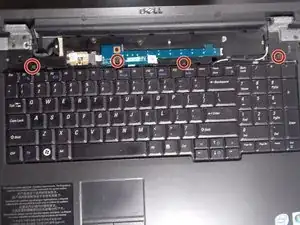

    • Remove the four 3mm Philips #1 head screws.

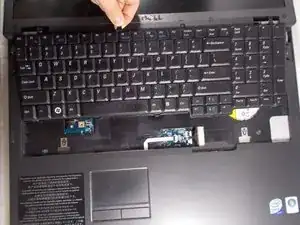

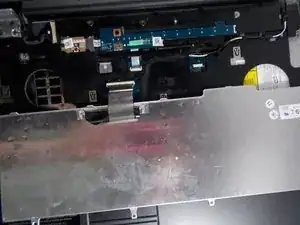

  7. iUuKQejE1ZYXRWE2
    iUuKQejE1ZYXRWE2
    smZHFDSrvqeobWPp

    • Gently lift up the keyboard to remove.

    • Flip it over as it shown in the picture.

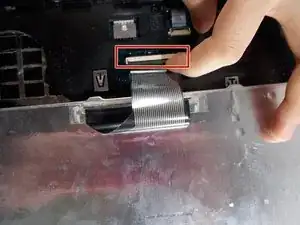

  8. lJqxxyYZNNKbR1wW
    lJqxxyYZNNKbR1wW
    clQrLrvaxCwkLybe

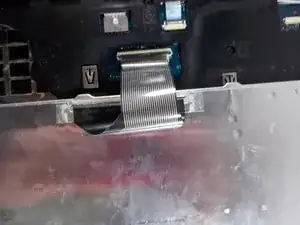

    • Lift the black tab that the keyboard is plugged into.

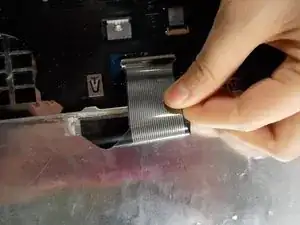

  9. JbZ134WMEi1MXTDR
    JbZ134WMEi1MXTDR
    RhDGCJkDkOXo5pXH

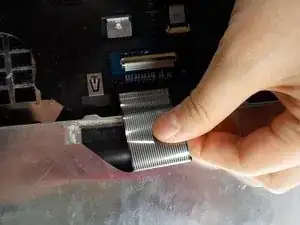

    • Pull directly outwards to remove the keyboard completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
