Dell Vostro 2420 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 1
Dell Vostro 2420 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

8 - 20 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

Werkzeuge

  1. oqR4hJEfITo1I1uX

    • Slide the release latches to unlock the battery.

  2. TxdpmW5RFtWXIurI

    • Slide the battery and remove it from the computer.

  3. yCQJTIgRe4vy6tVa

    • Starting on the right, pry up the keyboard from the computer.

    Might need to be a little rough at this point. I had a few marks on the plastic bezel. Needed to use a small Flathead screwdriver but something plastic might be better to use.

    Ben Pretulac -

  4. xobZ2CCYGRKGCy2l

    • Flip the keyboard over and lay it on the palmrest.

  5. VXPErBTMJ1HTqgXU

    • Disconnect the keyboard cable from the system board.

  6. CUSJQxffYNOetUeZ

    • Remove the keyboard from the computer.

  7. uuykRdwQDSKaluAK

    • Pry the retention clips away from the memory module until it pops up.

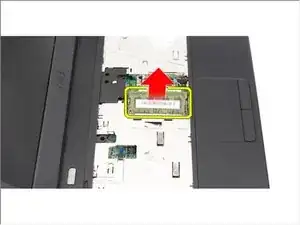

  8. BTeOUJKwyYg3MAgT

    • Remove the memory module from the computer.
