Dell Vostro 2420 Palm Rest Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 1
Dell Vostro 2420 Palm Rest Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

10 - 20 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Palm-Rest.

  1. oqR4hJEfITo1I1uX

    • Slide the release latches to unlock the battery.

  2. TxdpmW5RFtWXIurI

    • Slide the battery and remove it from the computer.

  3. yCQJTIgRe4vy6tVa

    • Starting on the right, pry up the keyboard from the computer.

    Might need to be a little rough at this point. I had a few marks on the plastic bezel. Needed to use a small Flathead screwdriver but something plastic might be better to use.

    Ben Pretulac -

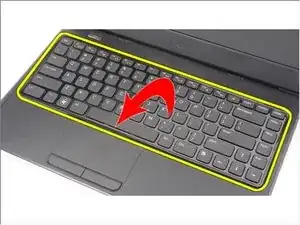

  4. xobZ2CCYGRKGCy2l

    • Flip the keyboard over and lay it on the palmrest.

  5. VXPErBTMJ1HTqgXU

    • Disconnect the keyboard cable from the system board.

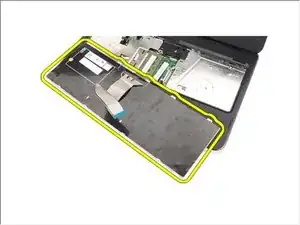

  6. CUSJQxffYNOetUeZ

    • Remove the keyboard from the computer.

  7. V2iPvKy6KuIUlZae

    • Remove the screws at the base of the computer.

  8. NlT3cx2AiIXMltNU

    • Flip the computer and disconnect the power board cable and the touchpad cable.

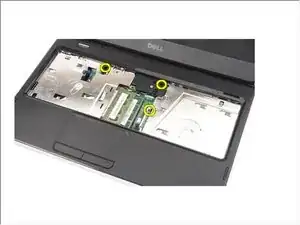

  9. doFgrXD5hxARkoYn

    • Remove the screws that secure the palmrest to the computer.

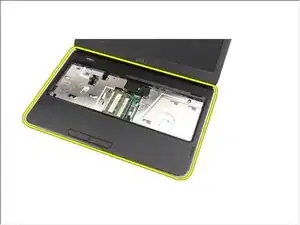

  10. glJ6yoeAI6amA3tn

    • With a plastic carefully pry up the palmrest along the edges. Lift the palm-rest and remove from the computer.
