Dell Vostro 2421 Hard Drive Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 2421 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

6 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. QGVBfCQLuBBDxOaj

    • Slide the release latches outwards to unlock the battery and lift the battery to remove it from the computer.

  2. RiZjeiTItjZpCc62

    • Loosen the screw that secures the access panel and remove it from the computer.

  3. 1WatSR2tyVWGQH4p

    • Lift the access panel.

  4. 3FPHRaZaJTlvhuT4

    • Remove the screws that secure the hard-drive assembly to the computer.

  5. LJGZW4iOFrZUE2DR

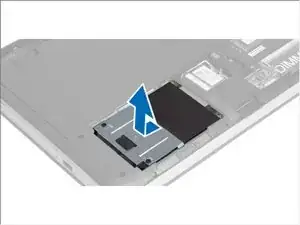

    • Slide the hard drive in the direction shown and lift the tab to remove it from the computer.

  6. eJMLeDUrWILtdBtL

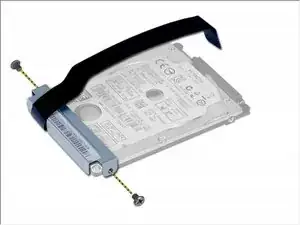

    • Remove the screw that secures the hard-drive caddy to the hard drive and remove it.
