Dell Vostro 3300 Base Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. KjIEEnSDKocBI2ZQ

    • Slide the battery release latch to the unlock position.

  2. 3UNaDULrMIGBcuc1

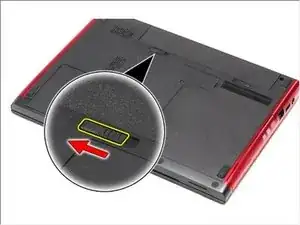

    • Slide the other battery release latch to the unlock position.

  3. ILYuucju4DgwYxFZ

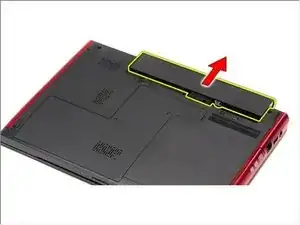

    • Slide the battery and remove it from the computer.

  4. QQoVdAArMqNyoFyh

    • Remove the screws that secure the base cover to the computer.

  5. IRoLLFC2tXVWSfEd

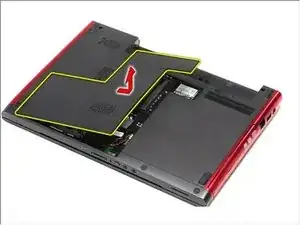

    • Lift up the base cover and remove it from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
