Dell Vostro 3350 Memory Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

6 - 15 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Module.

  1. Py3HoJjWgjfFXdol

    • Slide the release latches to unlock the battery.

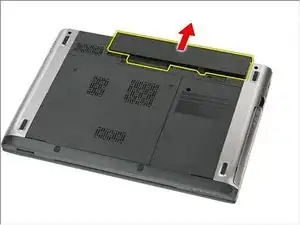

  2. WJrykG6fURfEfIWC

    • Slide the battery and remove it from the computer.

  3. naAr5CBAMhNbodSm

    • Remove the screws that secures the access panel to the base of the computer.

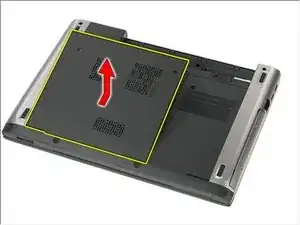

  4. MrjfrQE3JALrdENu

    • Lift the access panel up at an angle and remove it from the computer.

  5. SyDTBEKhv5KPno2D

    • Pry the retention clips away from the memory module until it pops up.

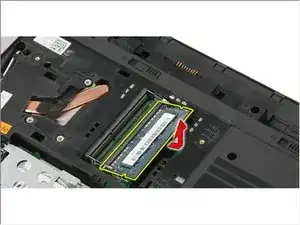

  6. BAGKhlnZXqGodngJ

    • Remove the memory module from its connector on the system board.
