Dell Vostro 3360 Battery Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 3360 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

9 - 20 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

  1. juOH4AC4VVjLblQD

    • Remove the screw that secures the access panel to the computer.

  2. TEYFwZTnNasYCfnP

    • Remove the access panel from the computer.

  3. cqgjFEjGJRZVTTn3

    • Remove the screw that secures the keyboard to the chassis.

  4. sMF3VXJ4qLwuwuR2

    • Starting on the right side of the system, use a plastic scribe to pry up the keyboard from the computer.

  5. W46ZdNsYiQ35u5dQ

    • Flip the keyboard over and lay it on the palmrest.

  6. YCfRD4bwWYBNbHvV

    • Lift the clip to release the keyboard cable and disconnect it from the computer.

  7. BYTrQBOvVaJGXfsM

    • Disconnect the battery cable from the system board.

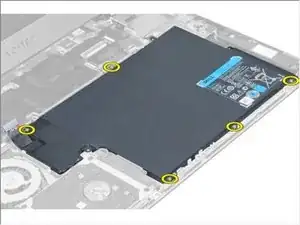

  8. DL32VQO2cS5SJeeq

    • Remove the screws that secure the battery to the system board.

  9. YRaSVdU5BmEhOthx

    • Remove the battery from the computer.
