Einleitung

  1. cqgjFEjGJRZVTTn3
    • Remove the screw that secures the keyboard to the chassis.

  2. sMF3VXJ4qLwuwuR2
    • Starting on the right side of the system, use a plastic scribe to pry up the keyboard from the computer.

  3. W46ZdNsYiQ35u5dQ
    • Flip the keyboard over and lay it on the palmrest.

  4. YCfRD4bwWYBNbHvV
    • Lift the clip to release the keyboard cable and disconnect it from the computer.

  5. juOH4AC4VVjLblQD
    • Remove the screw that secures the access panel to the computer.

  6. TEYFwZTnNasYCfnP
    • Remove the access panel from the computer.

  7. sllNHNFIeVdYJe6R
    • Remove the screws that secure the display-hinge cover to the computer

  8. mJGLSopmEaEByfeb
    • Remove the display-hinge cover from the computer.

  9. l5mFHQtbm5AgntZk
    • Using a plastic scribe pry out the rubber pads that cover the front screws on the base cover.

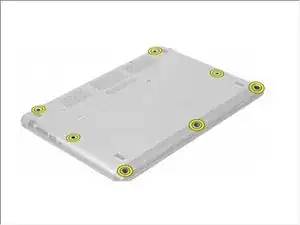

  10. tGAUN2pXUN2RUeeG
    • Remove the screws that secure the palm-rest to the computer.

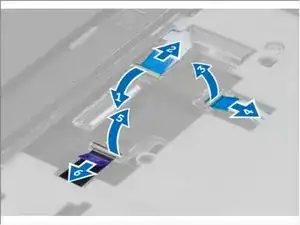

  11. jT6IJUDilftBDfrr
    • Disconnect the quick launch board cable, the finger print reader cable, and the palmrest cable from the system board.

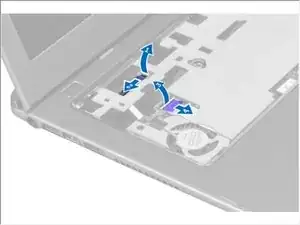

  12. PKMMTZcVpC4Saf6A
    • Disconnect the power LED cable and the LED board cable from the system board.

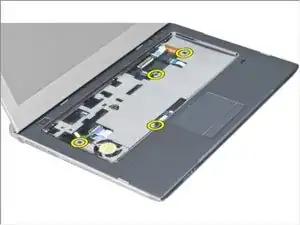

  13. V6VRb544sRlG3vKq
    • Remove the screws that secure the palmrest to the front of the computer.

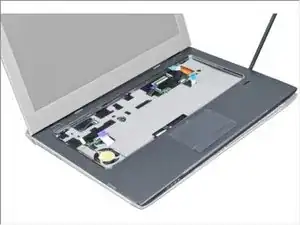

  14. gHSfZlBBpPxDQsng
    • Pry along the edges of the palmrest to release the palmrest.

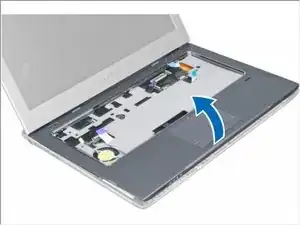

  15. DIEJLLBEWEWJZE5N
    • Lift the palm-rest up and away from the computer.

  16. 65lgKRbtsgYpTo1S
    • Remove the screws that secure the hard drive to the computer.

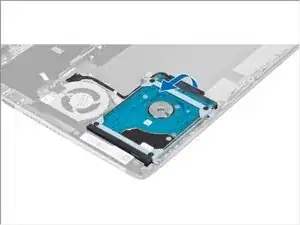

  17. XtUW6MGlL2mqiGUL
    • Lift the hard drive to disconnect the hard-drive cable

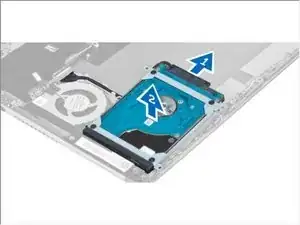

  18. eAdyqDCOTraXvhib
    • Disconnect the hard-drive cable from the hard drive and remove the hard drive from the computer

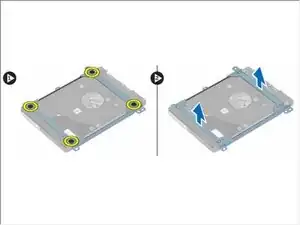

  19. ZHWoMUrAuLLueaA3
    • Remove the screws that secure the hard-drive bracket to the hard drive and remove the hard drive bracket from it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
