Dell Vostro 3400 Base Cover Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 3400 Base Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Base Cover.

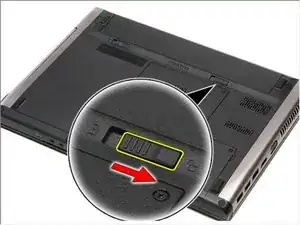

  1. iVhtWYZcepH6cL3V

    • Slide the battery release latch to the unlock position.

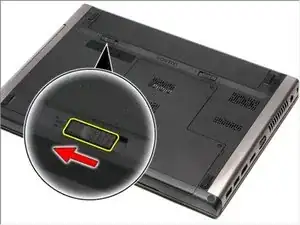

  2. jTAbAYlobxvOjUFk

    • Slide the other battery release latch to the unlock position.

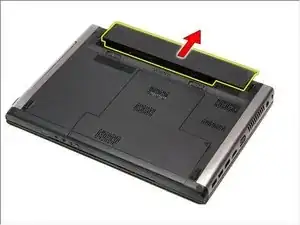

  3. X2PEbVRXyVUBLNYe

    • Slide the battery and remove it from the computer.

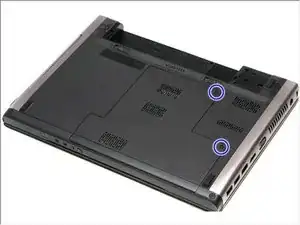

  4. VJVSPVvDWCWmUvXS

    • Remove the screws that secure the base cover to the computer.

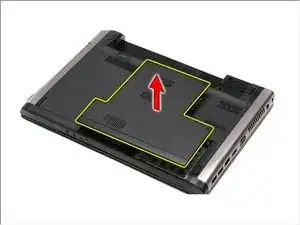

  5. vSo1PvRyUvQ3nBxR

    • Lift up the base cover and remove it from the computer.
