Dell Vostro 3400 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

10 - 20 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. iVhtWYZcepH6cL3V

    • Slide the battery release latch to the unlock position.

  2. jTAbAYlobxvOjUFk

    • Slide the other battery release latch to the unlock position.

  3. X2PEbVRXyVUBLNYe

    • Slide the battery and remove it from the computer.

  4. VJVSPVvDWCWmUvXS

    • Remove the screws that secure the base cover to the computer.

  5. vSo1PvRyUvQ3nBxR

    • Lift up the base cover and remove it from the computer.

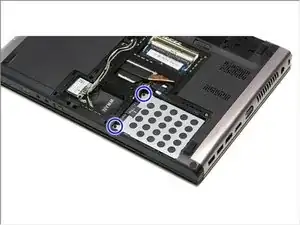

  6. 4TuyEsMxOEoJEN1u

    • Remove the screws that secure the hard-drive assembly to the computer.

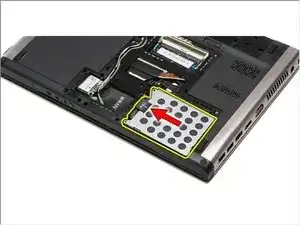

  7. yLeZfnWpRgx5vIWr

    • Slide the hard-drive assembly towards the center of the computer.

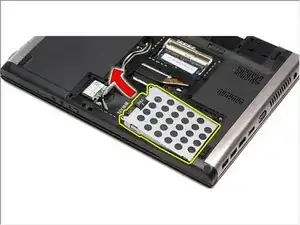

  8. ItpQCWXKR2eCqEgI

    • Lift the hard-drive assembly up and away from the computer.

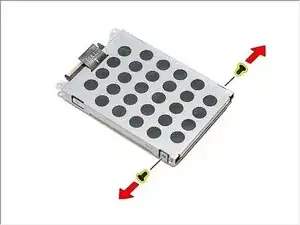

  9. sYavJKGPdFc5HHsY

    • Remove the screws that secure the hard-drive bracket to the hard drive.

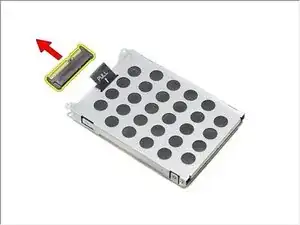

  10. pIQjQeS6Q1Me5qPT

    • Remove the hard-drive adapter from the hard-drive assembly.

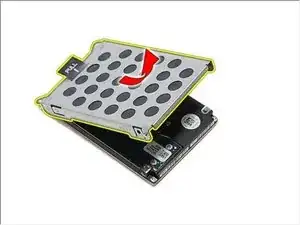

  11. JbHDYo3rpWTyryZk

    • Lift the hard-drive bracket up and away from the hard drive.
